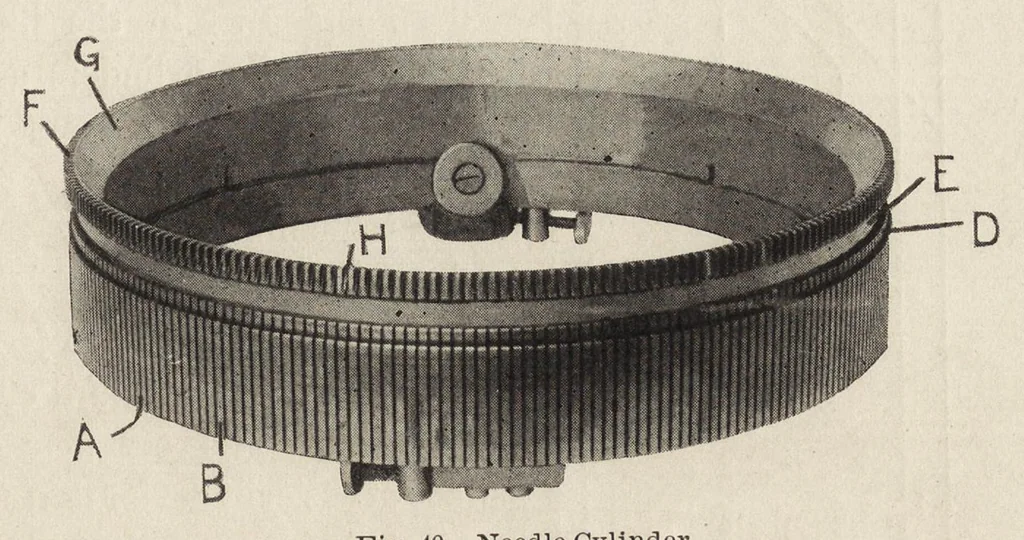

KNITTING 97 is arranged. On this cam ring are secured four studs D, to support the dial arch E for holding up the cap, on which is arranged the cam system for the radial needles, and the dial. The bobbins are held on a frame, the supports H of which are secured to the cam ring also, … Fig. 40. Needle Cylinder. To the right housing plate Y is secured the driving shaft bracket I, which makes the outer bearing for the driving shaft, and on the shaft J are tight and loose pulleys between the bearings. Outside the shaft bracket bearing is a hand wheel J’, for turning the machine by…
