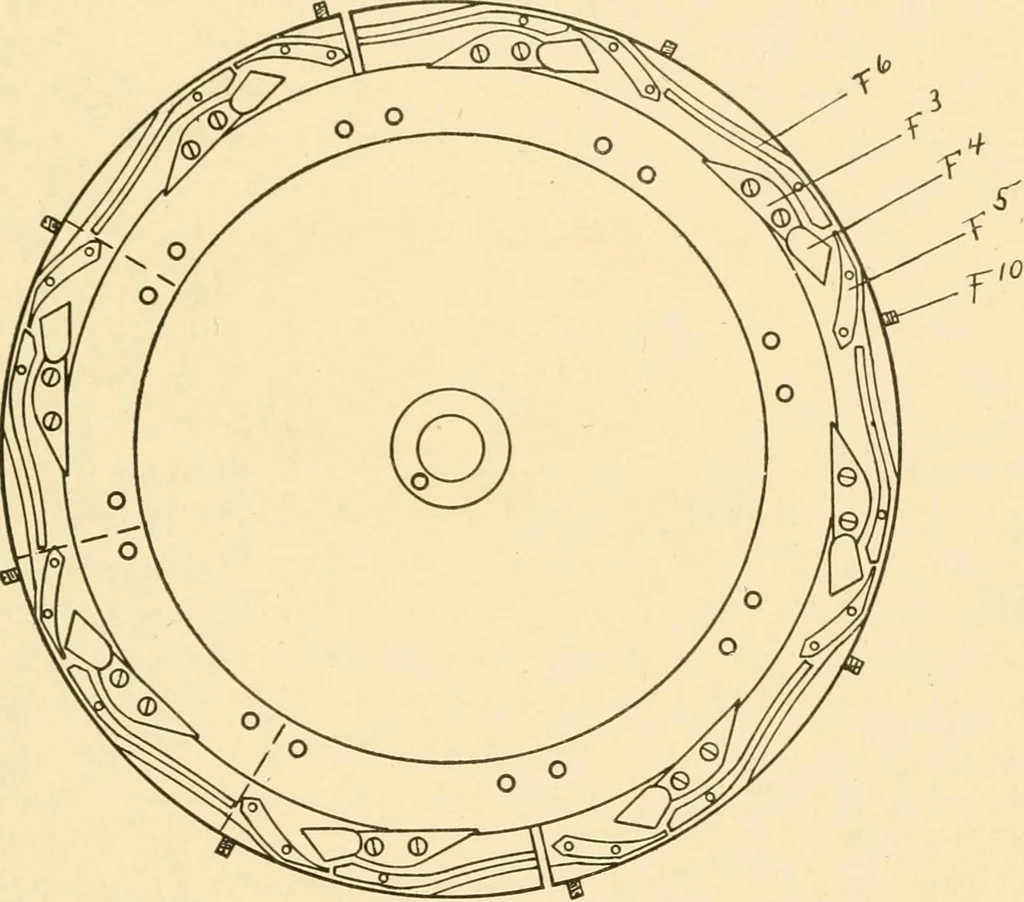

edles in the dial and those in the cylinder, work in thecenter of space between the needles of the opposite plate, and as thefabric on the machine is varied in thickness, either the dial or cylinderdrivers are made adjustable, especially in large machines. Fig. 40represents a cylinder with… … Fig. 45. Dial Cap. the stitch cam, and F, the guard cam, antl their locations. Fig. 46shows each cam in detail. On plain machines, cams F and F* areoften made in one piece corresponding to cam B in the cam ring;but in automatic machines, the tuck stitch which widens the fabricis made by moving the…
