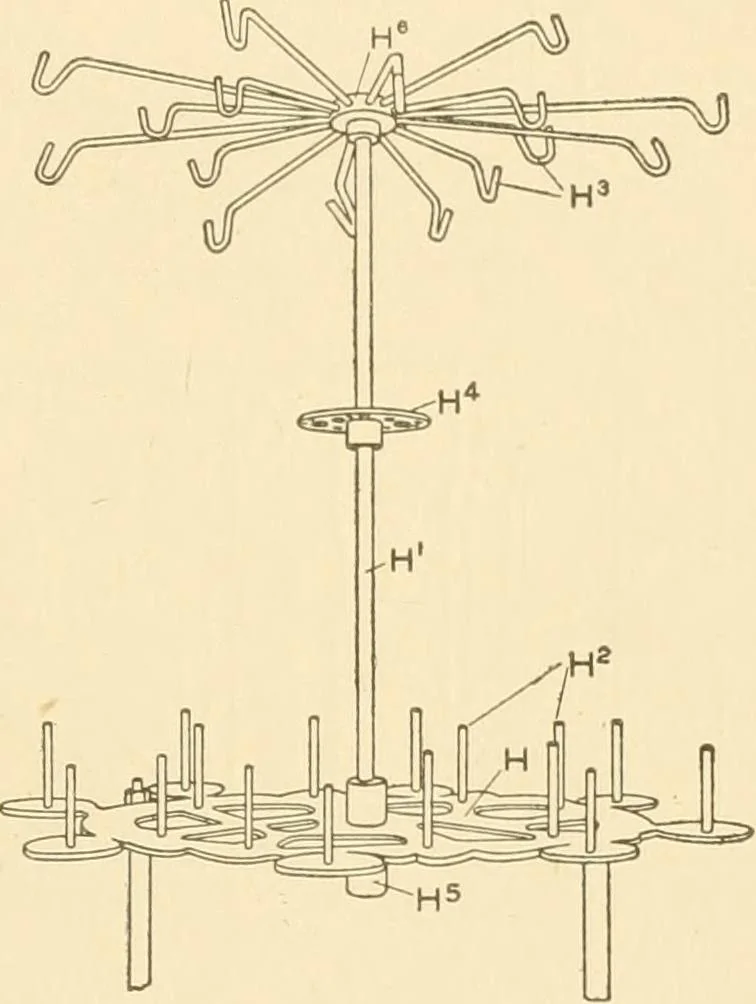

le V, and a coil spring Y* isattached to trip Y\ tending to hold it in contact with 1\ The shifterfork and handle are fastened to shaft I in such a position that thenormal action of the coil spring Y^ is to hold the belt on the loosepulley, but by raising the handle the belt fork shifts the belt… … Fig. 50. Bobbin Raclc. 12! 108 KNITTING when spring Y returns the bek fork and shifts the beh to the loosepulley. Hole and Bunch Detector. Fastened on top of the cam ring,directly over the end of trip Y (Fig. 51), is the needle protectorbracket Y^, provided with latch Y and. finger Y\ Through the…
