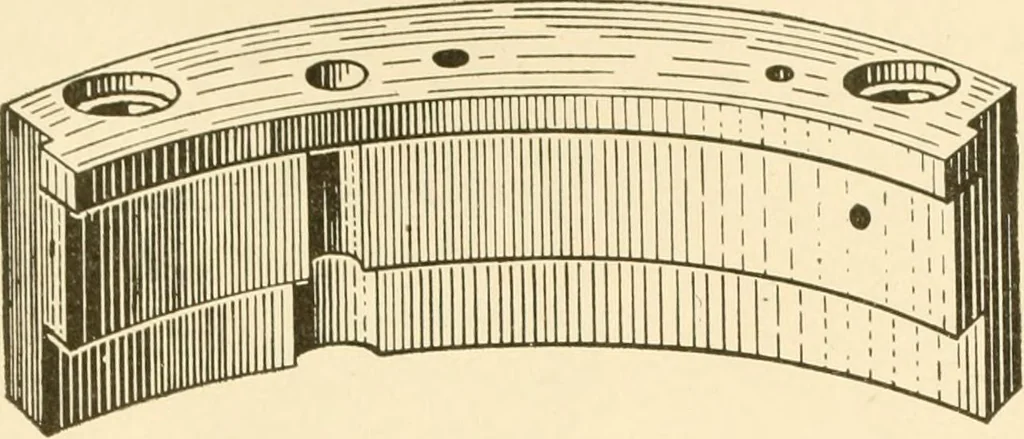

late B andas it turns, the pinion gear fixed to the lower end of the worm shaftand meshing into the stationary internal gear (Parts shown in Fig.64), causes the worm 0^ Fig. 61 (also shown at Fig. 65), to revolveand impart motion to the fluted take-up rolls 0* and 0. These arejournaled in the… … Pig. 69. Cam Ring Section. take-up roll 0 is geared at 0 to the driver roll 0^ at the opposite endfrom the worm gear, Fig. 6(), and is journaled at each end in slidingblocks, guides being provided for that purpose in the take-up stand-
