Wheels and wheeling; an indispensable handbook for cyclists, with over two hundred illustrations (1892)
Porter, Luther Henry · Boston, Wheelman Company · leaf 322

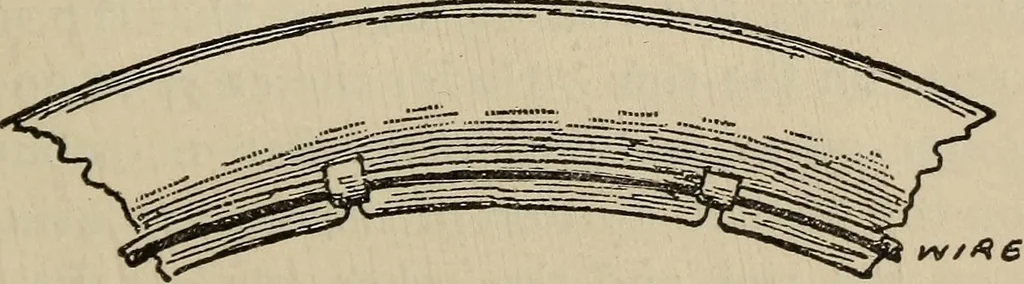

Maxim Stud Tire. The Michelin pneumatic tire is a French inven-tion. It is a wired tire, with a flattened rim orrather the wires, which are made of square steel, areembedded in grooves below the surface, so that none … Michelin Pneumatic Tire. of the actual tire is sunk in the rim ; the rim is alsobroad. A single air tube is formed with butted ends,one slipping into the other, to facilitate removal with- 302 WHEELS AND WHEELING. out taking out the wheel. The outer cover is canvas-backed, with a kind of flange or…
