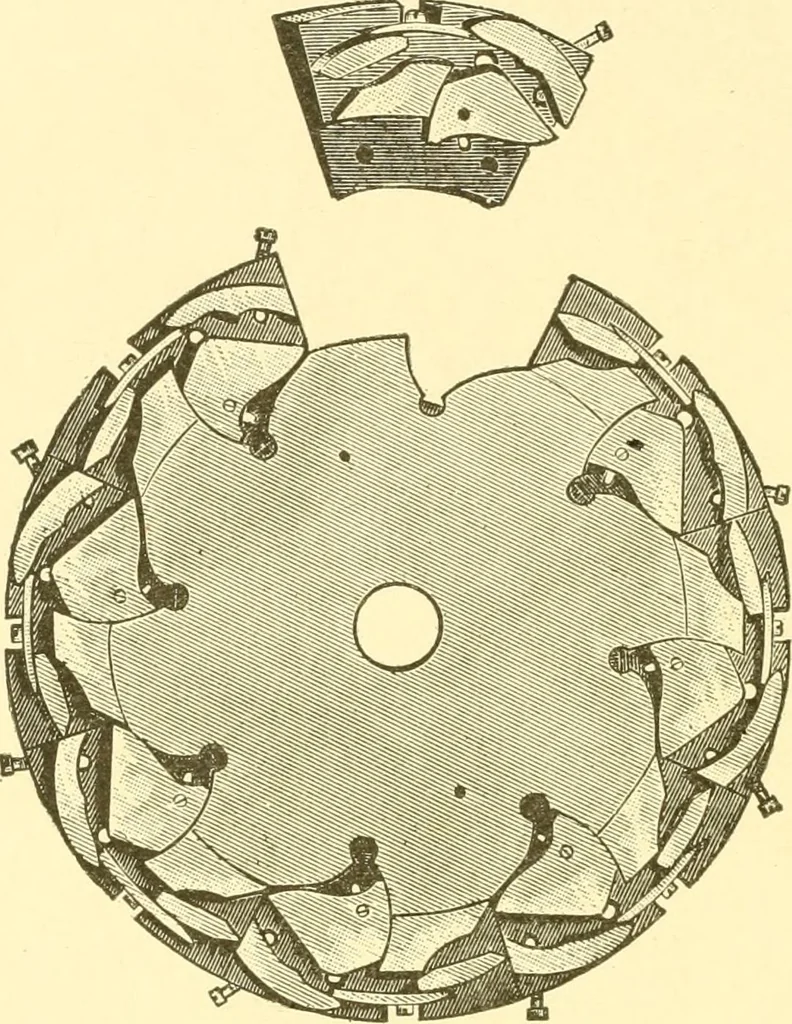

ock. 141 128 KNITTING The worm gear is loose on the ch-iving roll and is provided witha clutch, Fig. G6, feathered on the driving roll in such a manner thatwhen the clutch is pulled away and disconnected from the worm gear,the rolls are at rest, leaving the worm gear free to revolve on the… … Fig. 71. Cam Dial with Section Removed. the take-up plate. A fabric roll is often used in place of the can, andthe fabric rolled up as shown in Fig. 67. Head and Cam Ring and Cam Dial Plate. Fig 68 repre-sents a plain body machine head, without the needle cylinder andneedle dial, and more clearly…
