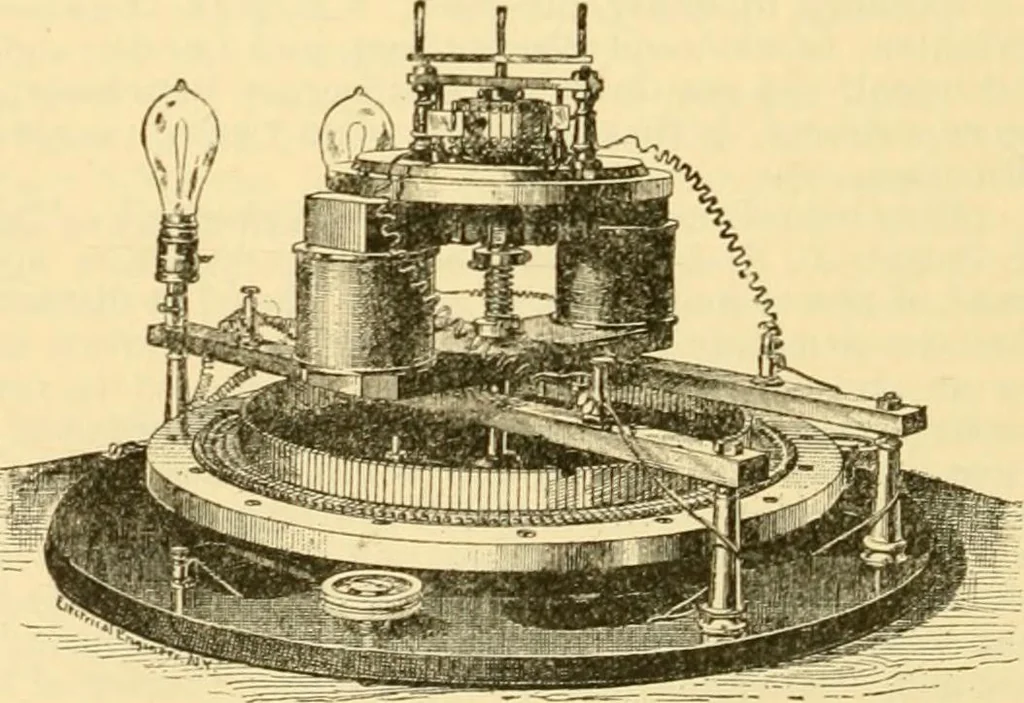

ntal distributors, s and s-. Theyare shown flat in the diagram, forclearness, but are evidently at rightangles to the spindles, which inpractice are vertical, as shown inFig. 7, which represents the machinein perspective. The telegraph line extends alsofrom earth, £ at X, to U- at Y, oneset of… … Fig. -Di>tribntor motor. From earth, E\ through the line battery positive to .....,, .^. , . , ^.. , -., segment No. 1 of the distributor, and through the trailing brush to the large segmentof the distributor, to which the line is connected at X; TELEGRAPH. 841 thence o%-er the telegraph line, T…
