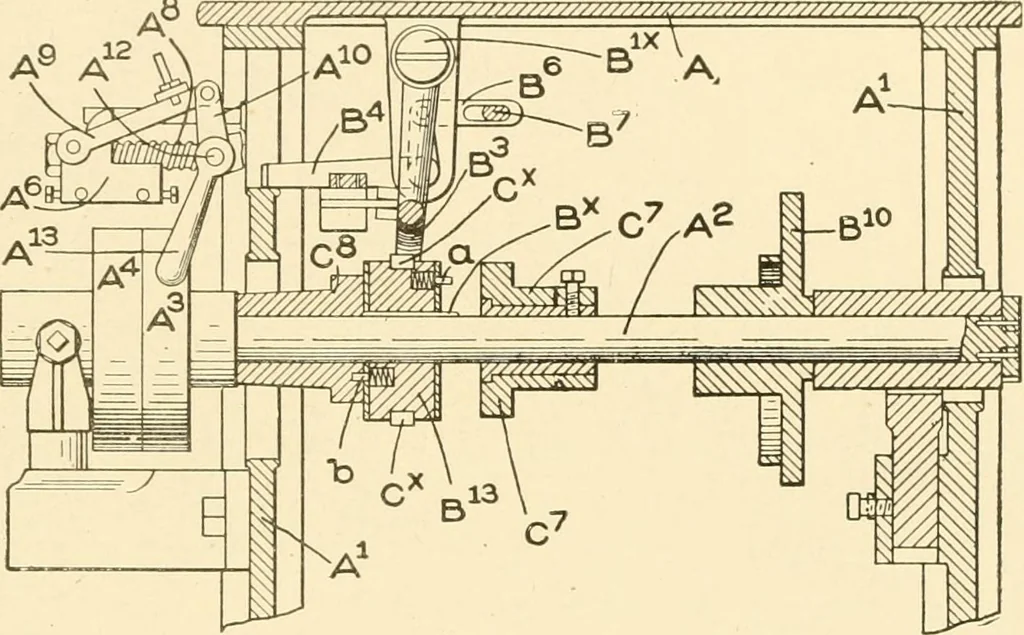

hub is a loose gear (7 mounted on a flanged bushingand collar arrangement secured to the shaft by a set screw and pro-vided with a hole in the clutch face to receive the pin. At the oppositeside of the hub and loose upon the shaft, is the pinion C^ which issecured to the sleeve of the loose pulley… … Fig. 137. Method of Driving. The gear C has a crank pin (See Figs. 138 and 139) providedwith a link C^° which, at its opposite end, is attached to a stud on thesegment gear C^^ pivoted at C*^, the segment engaging the loose gearC^ and oscillating it continuously. When the pin h of the clutch hubB^^…
