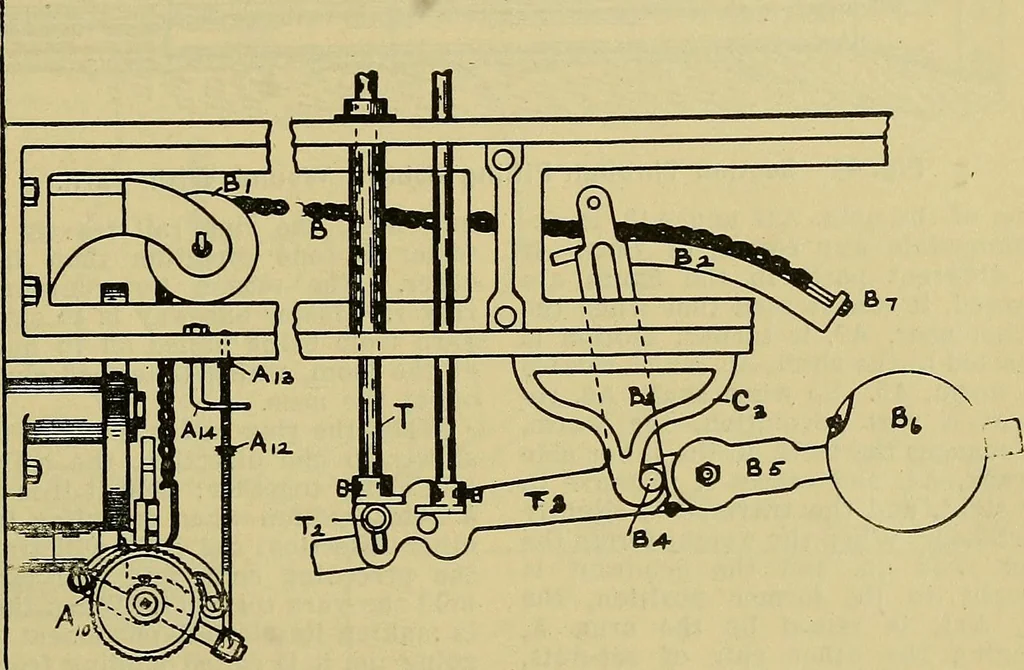

to the quadrant. suflEiciently heavy to over-balance theweight of the ring rail, which forcesthe lifter rods and ring rail up, andan up-and-down traverse of the yarnon the bobbin is obtained. As stat-ed, the chain, B, is connected to therack, A4, which is supported ingrooves cast in the arm, A. A4… … Fig. 45. Diagram of Combijiation Builder Mot on. it acts upon it and will swing thearm, B3, to the left and turn the rod,B4, thus lifting the weight, B6. When the weight is raised, it al-lows the lifter rod to drop, owing tothe weight of the ring rail and its con-necting parts. Thus, it can be…
