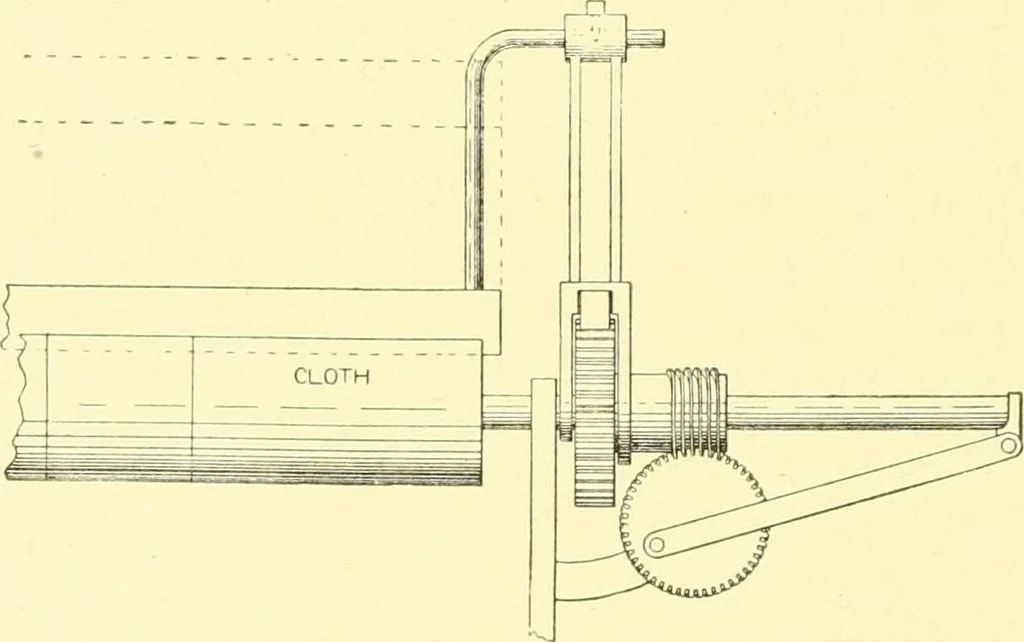

atter motion is imparted by the suitably connectedrockshaft levers. The mechanism for imparting the endwise motion, Fig. 8, isattaclicd to the building rail on the receiving pulley end of themuchine from which it gets its movement. The friction rail issupported at each end by trunnions on which it… … Fis- Endwise Motion. roimeeted with the building rail and turns it with a worm gearrunning on the same trunnion. The worm causes to revolve awheel gear to which is attached a rod connecting it with the cot-ton friction rail in a manner to impart to it a slow motion backand forth. These two motions…
