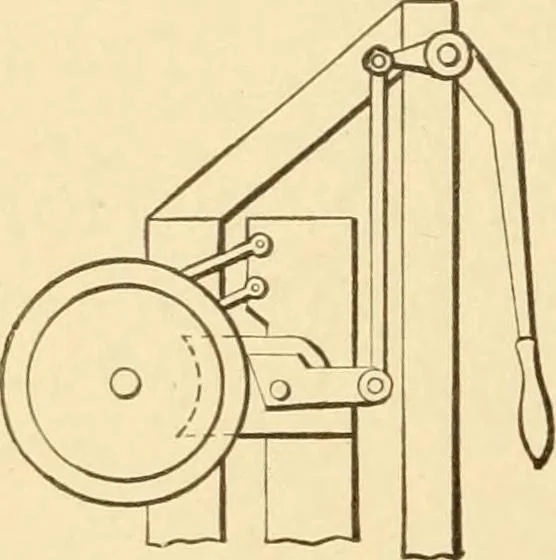

1012. INTERMITTENT CIRCULAR MO- A ^ TION of a ratchet wheel with a check pawl by / the continuous circular motion of a pawl wheel. 1013. WINDLASS GRIP PAWL.—A fric-tion pawl and rim grip piece are pivoted togetherso that by the vibration of the lever with its con-necting rod the grip pawl drops and…
