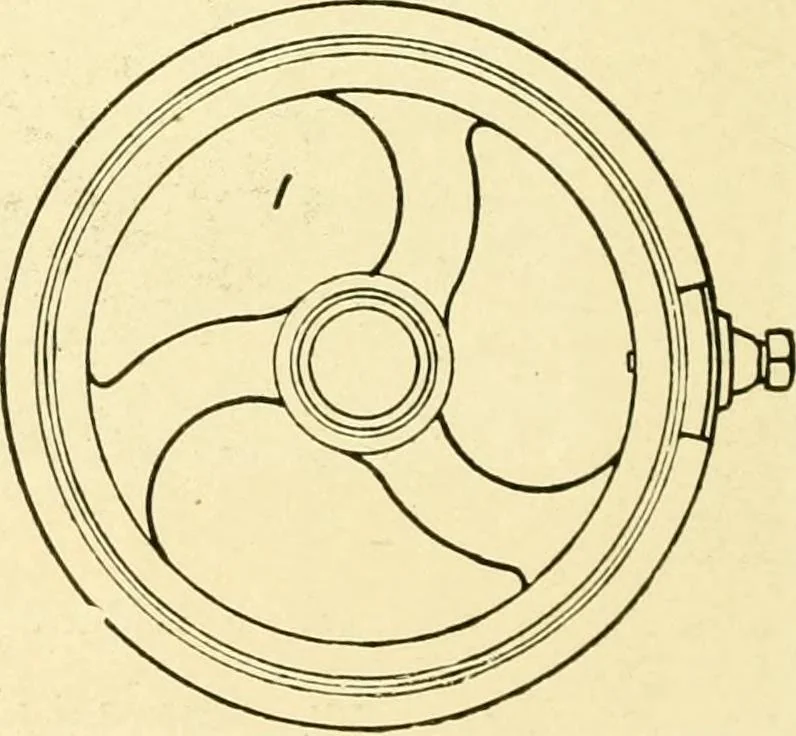

r the clampscrews to tighten the clamps that hold in place the leads contain-ing the needles. The drawing on either side at the top of Fig. 15show details of the double pinion and the bearing in which itruns. 84 KNITTING. The cylinder 1, is shown in two views — top and side; 2 isthe spur gear which… … Fig. 17. Cylinder and Parts. the bottom spreader, secured to the vertical shaft, and serves tokeep the web in the cylindrical form in which it left the needles;9 is an elliptical ring, the top spreader, also secured to the verti- 46 KNITTING. 35 cal shaft which serves to guide the web to the…
