Steam engines, prepared in the Extension division of the University of Wisconsin (1919)

Shealy, Edward Marvin · New York, McGraw-Hill · leaf 219

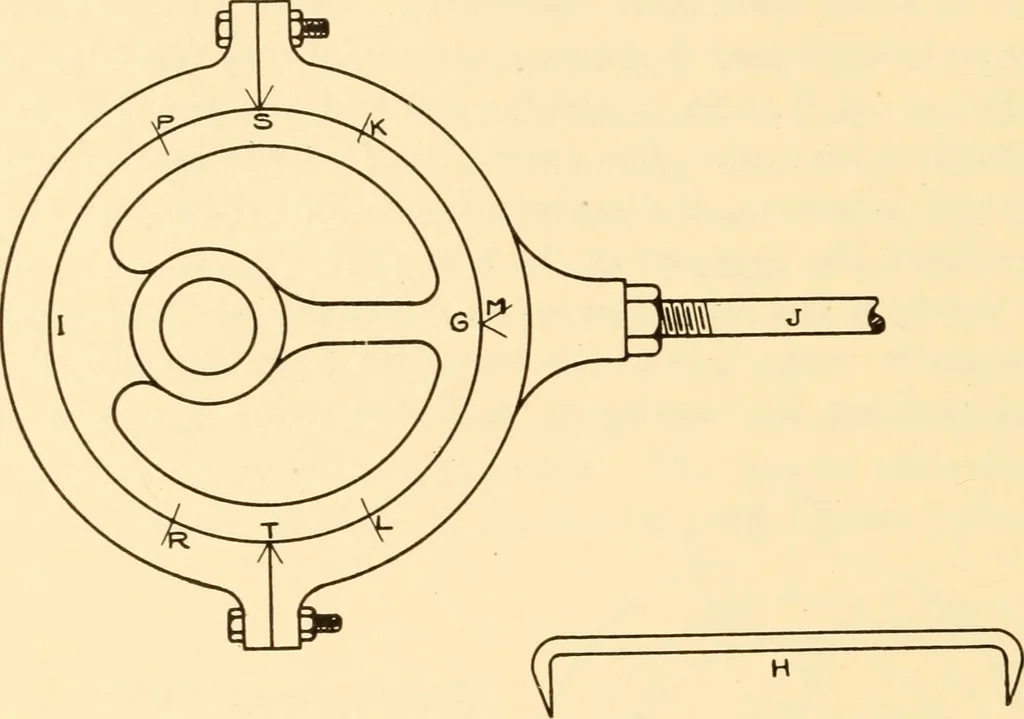

An illustration from Steam engines, prepared in the Extension division of the University of Wisconsin, 1919, leaf 219 — viders draw arcsM from K and L which meet exactly on the edge of the strap.When the point M coincides with either the points G or I theeccentric is exactly on center. With the dividers set to the length KM, strike arcs P and Rfrom / which end at the edge of the strap. Draw arcs S from P 204 STEAM… … Fig. 132. The manufacturers of Corliss engines usually place a mark A,Fig. 133, on the hub of the wrist plate and three marks D, B, andC on the wrist plate stud. When A coincides with B the wrist B c _z ■^ 7^~^
