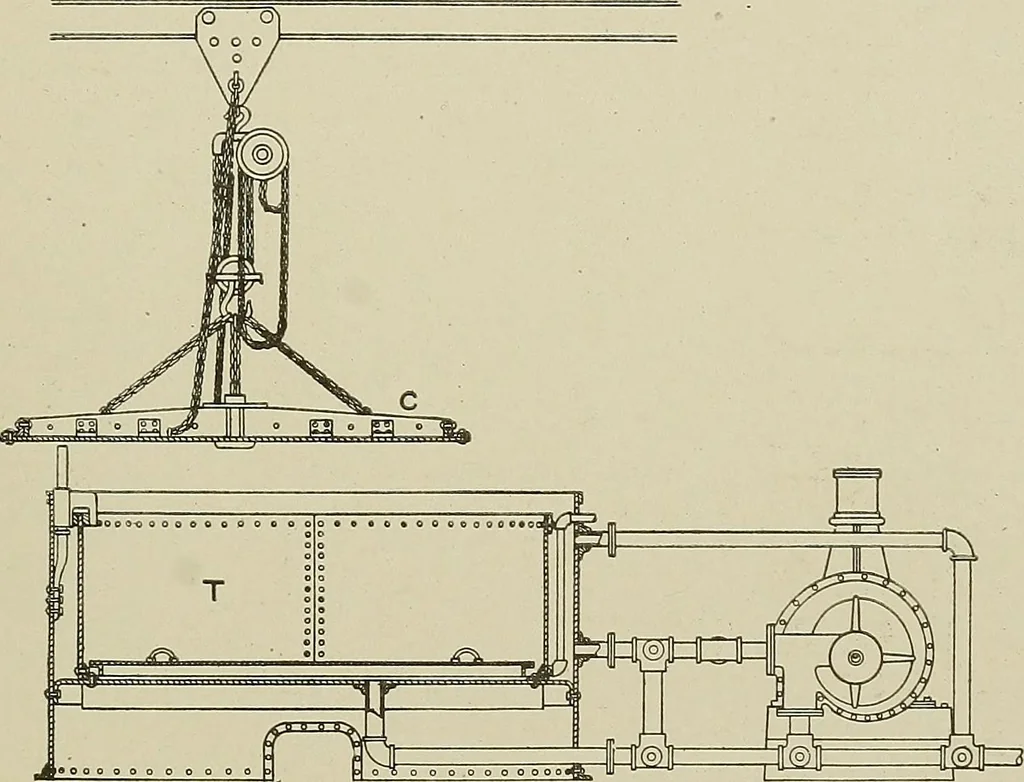

onsistof a long continuous apron which carries the damp stock betweencoils of steam pipes. The whole apparatus is covered with awooden structure which is well ventilated with fans. The Vacuum Dyeing Machine (Fig. 66) consists of a circulariron tub T, with a loose perforated bottom upon which the… … Fig. 66. Vacimm Dyeing Machine. bottom, from whence it passes up through the cotton and finallyreturns to the pump through a pipe which leads from the top. Inthis way a positive circulation of the dye liquor is kept up as long-as necessary. When the dyeing is completed the whole batch ofcompressed…
