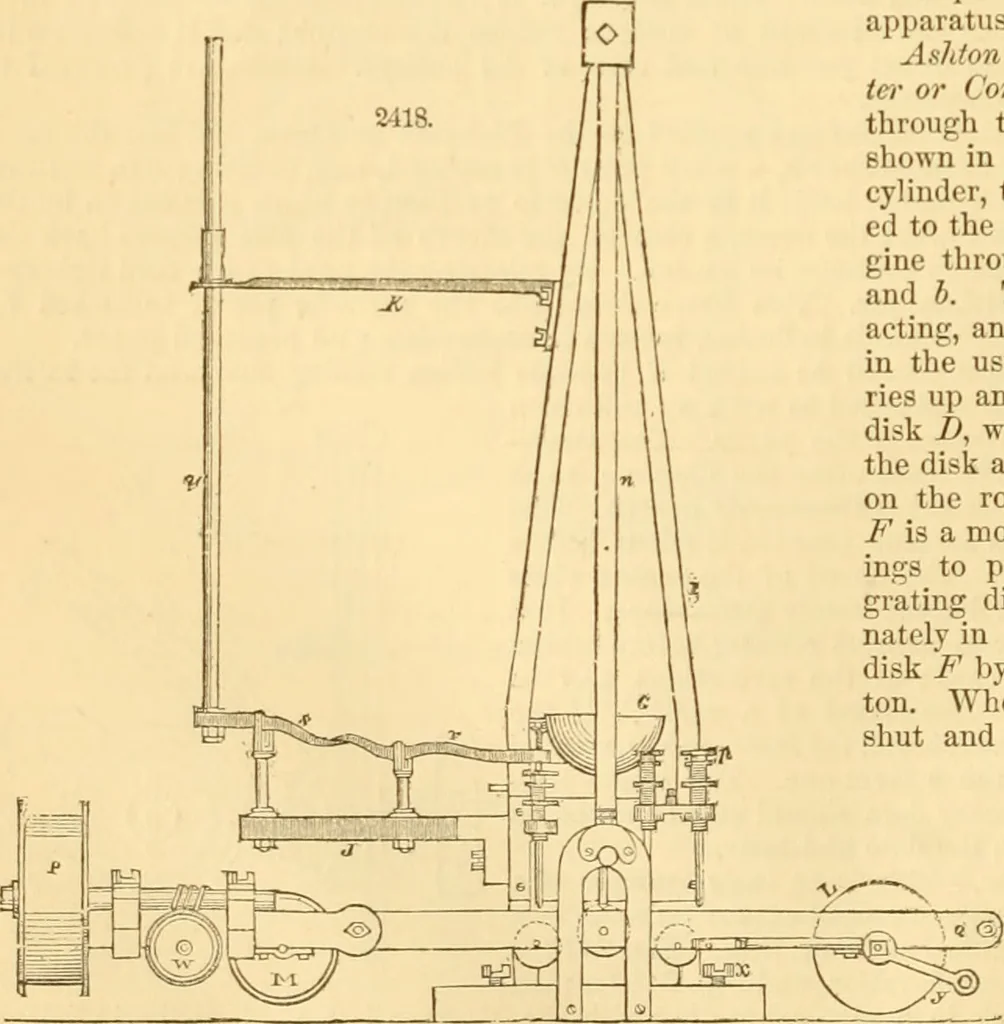

e integrating diskD bears at the centre of thedisk F, and receives no mo-tion therefrom. When theconnections are opened, theindicator - piston will moveupward, when the excess ofpressure is on the bottom,carrying up the disk B, which will receive motion from the disk F proportioned to the distance… … INJECTORS. 161 main piston will have been reversed; so the movement of the disk F will also be reversed, and thedisk _D receive motion proportioned as before to its distance from the centre of F, but in the samedirection as before. The motion of the disk D is imparted through the long pinion B to a…
