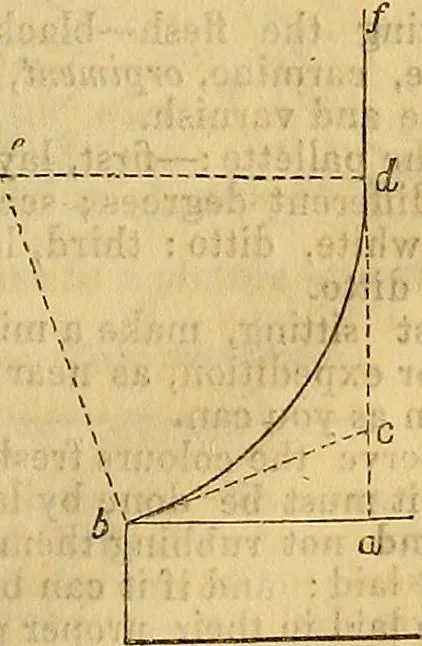

Fig. 9. tion of the moulding from the vertical line a e,which it is required to touch; and first, if theprojection a bis equal to the height of thecurve, make a c (fig. 9) equal to ah ; and fromthe points h and c as centres, with « 6 or a c asa radius, describe the arcs intersecting at d;from d,… … Fig. 10. be; this completes the contour of the congeIf the conge contains less than a quarter of acircle, as in fig. 10, let 6 e be the tangent to thecurve at the point b; on the vertical af set off 210 THE DECORATOR S ASSISTANT. the distance c d equal to c b ; draw b e at rightangles to b c, and d…
