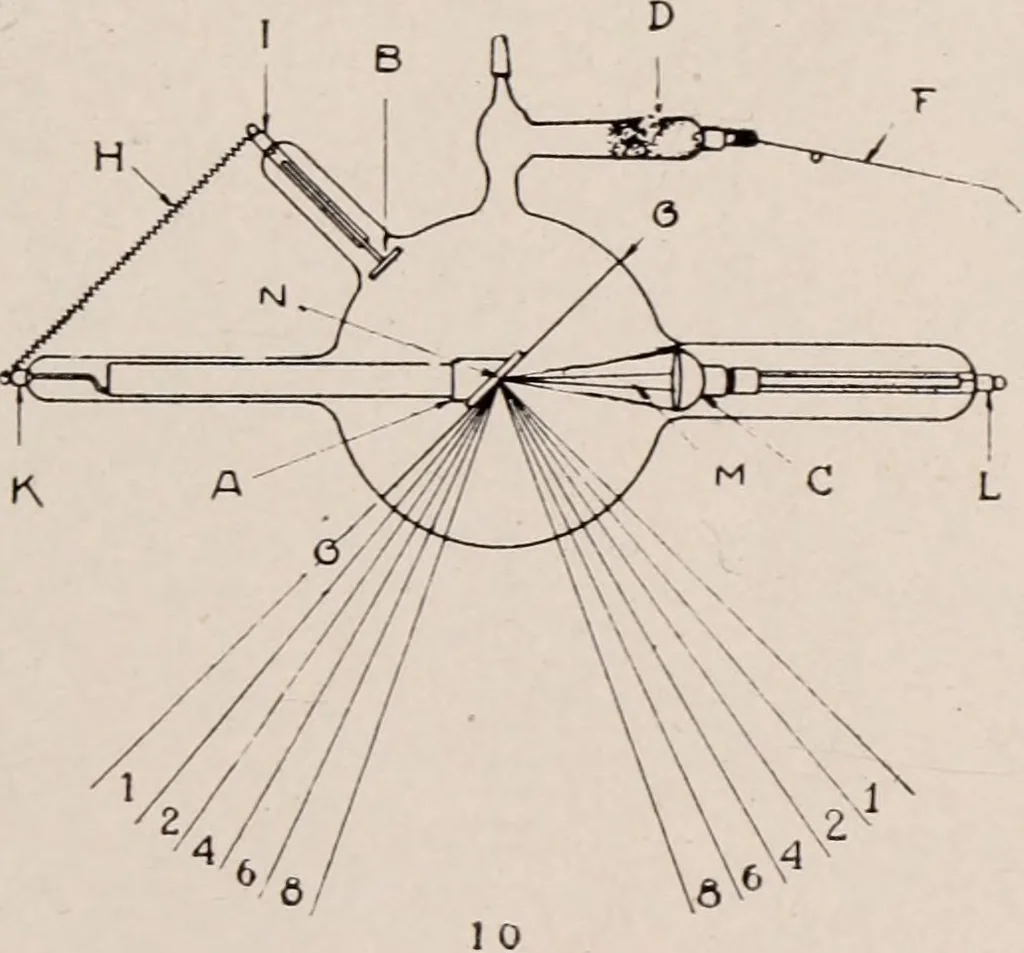

into theglass at the end of the elongation and connectedto a cap on the outside which serves as an elec-trical connection. The other elongation carries a rod at one endof which is a concave aluminum reflector, theother end being connected by means of a plati-num wire sealed in the glass to a cap on… … Fig. 25.Diagram of an x-ray tube. side of the elongation, and also serves as an elec-trical connection. The concave reflector is known as the cath-ode and the metallic block opposite it and lo-cated upon the end of the sheet iron tube is knownas the target or anode. Above the anodeand at an angle…
