Anthony, Gardner Chace, 1856- [from old catalog], Ashley, George Francis, [from old catalog] joint author · Boston, D. C. Heath & co. · leaf 153

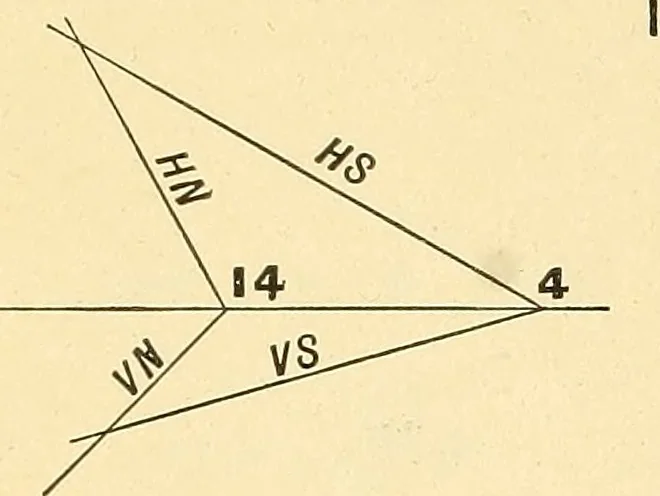

meter is 12 units. Draw the prs. of a circletangent to lines A and B. Itsdiameter is 8 units. Dra-wr the prs. of a circletangent to the traces of planeW, and lying in 3Q. Its di-ameter is 16 units. Draw the projections of the figures indicated. (Art. 45, page 32,) Unit of measure, ^ inch. Space…
Geometry, Descriptive
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
