Anthony, Gardner Chace, 1856- [from old catalog], Ashley, George Francis, [from old catalog] joint author · Boston, D. C. Heath & co. · leaf 34

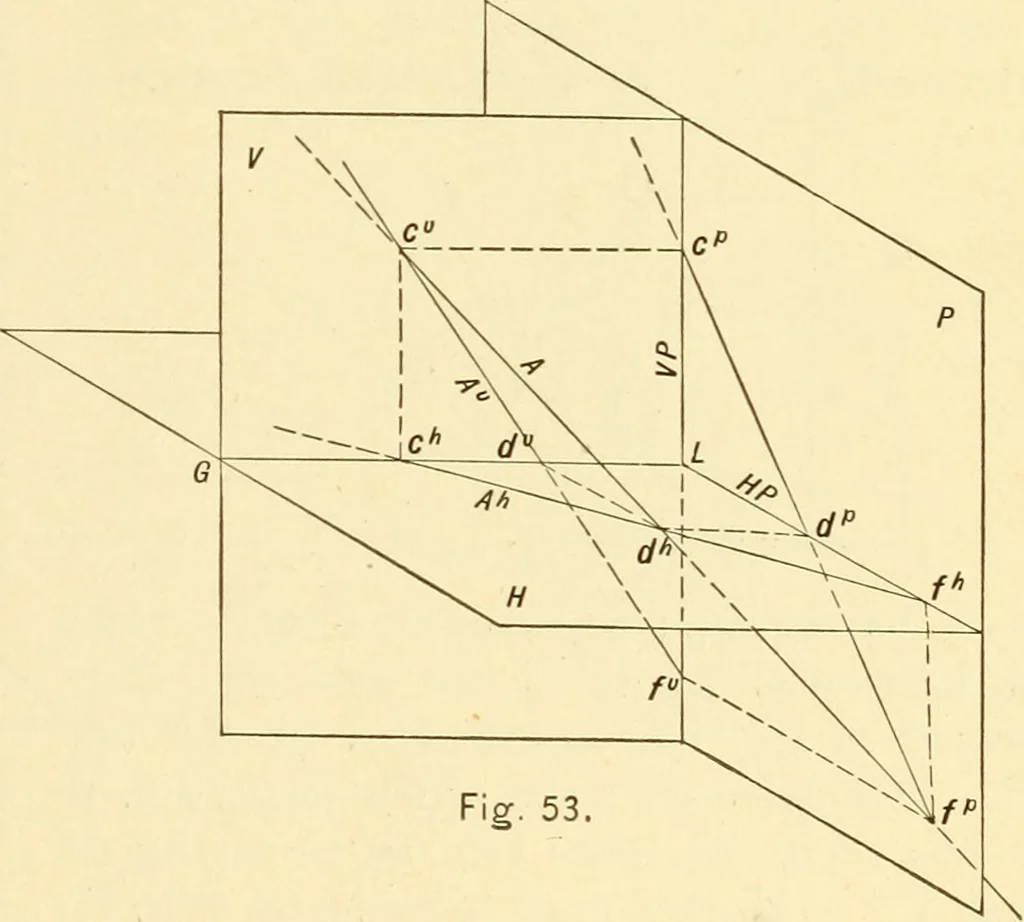

18 DESCRIPTIVE GEOMETRY 25. Case 2. When the line is inclined toV and H and is parallel to P. CoNSTEUCTiON. Fig. 5.1:. If the given lineis parallel to P, its vertical and horizontaltraces cannot be determined by the abovemethod, since the projections of the line areperpendicular to the ground line;…
Geometry, Descriptive
