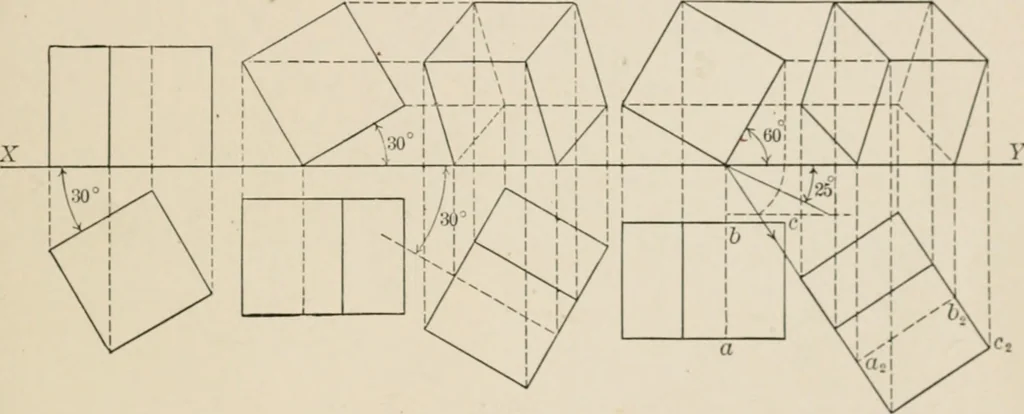

l and at 50° to theV.P. and the other diagonal is at 25° to the V.P. ( HAPTKR \l PROJECTIOX OF SIMILK SOLIDS SectiOx\ 11. The student will now be able to deal with easy problemsinvolving the use of simple solids, and as the solids used will be familiar tj-pes, theattention can be chiefly given to… … FlG. 28. Fig. 29. Fig. 30. ally to remember that we are to represent these solids by projecting their appear-ances perpendicularly on to the two planes of projection. Therefore he shouldstudy the possible attitudes or arrangements of the solids in relation to a vertica-plane and a horizontal plane…
