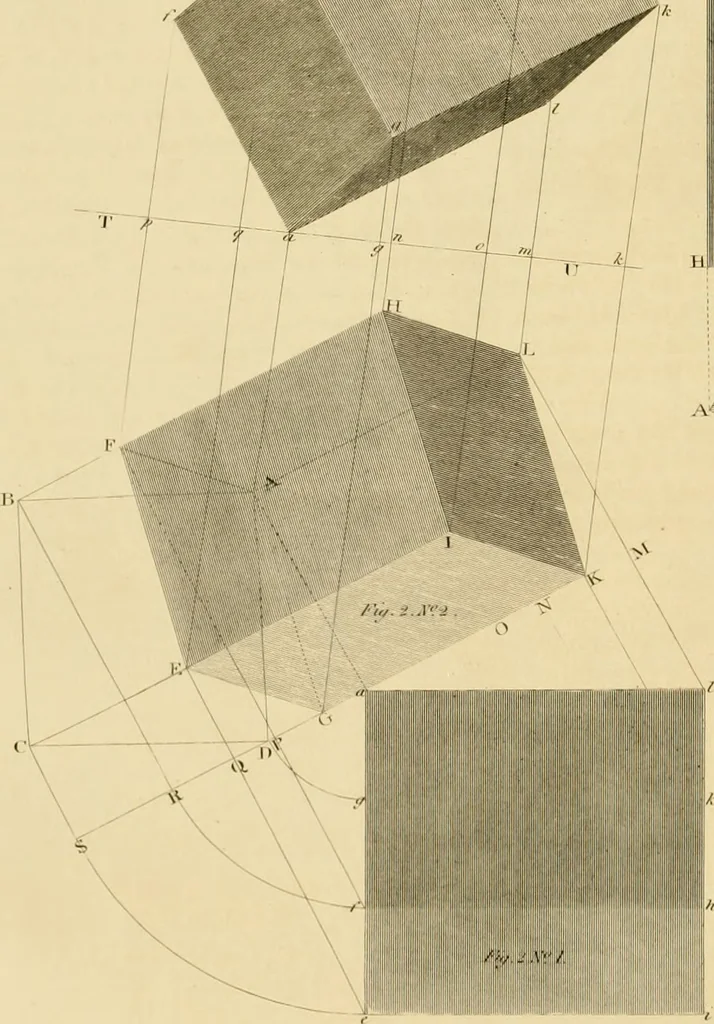

An illustration from Shaw's Civil architecture; being a complete theoretical and practical system of building, containing the fundamental principles of the art, 1852, leaf 101 — tion of aline which is parallel to the plane of projection is aline equal and parallel to its original. PROBLEMS. Plate 16. PROBLEM I. To project the elevation of a prism standing on a plane perpendicular to the projecting plane; giAen, the base of the prism and its position to the projecting… … fw /.]■■■/
