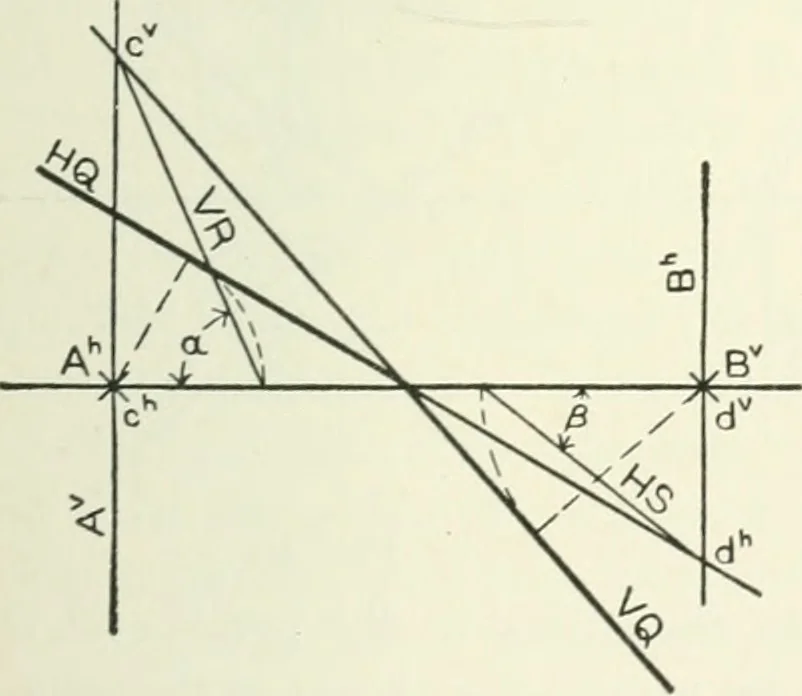

Fig. 209. … Fig. 210. Q. I Ha \ \\ * / a / Y va Q.> Fig. 211. Special Case. Let the given plane Q, Fig. 211, be parallelto the ground line. Find the profile trace of ^>on any assumedprofile plane. This trace, PQ, is an edge view of the plane(S 60), and gives the required angles, a with //and (3 with…
