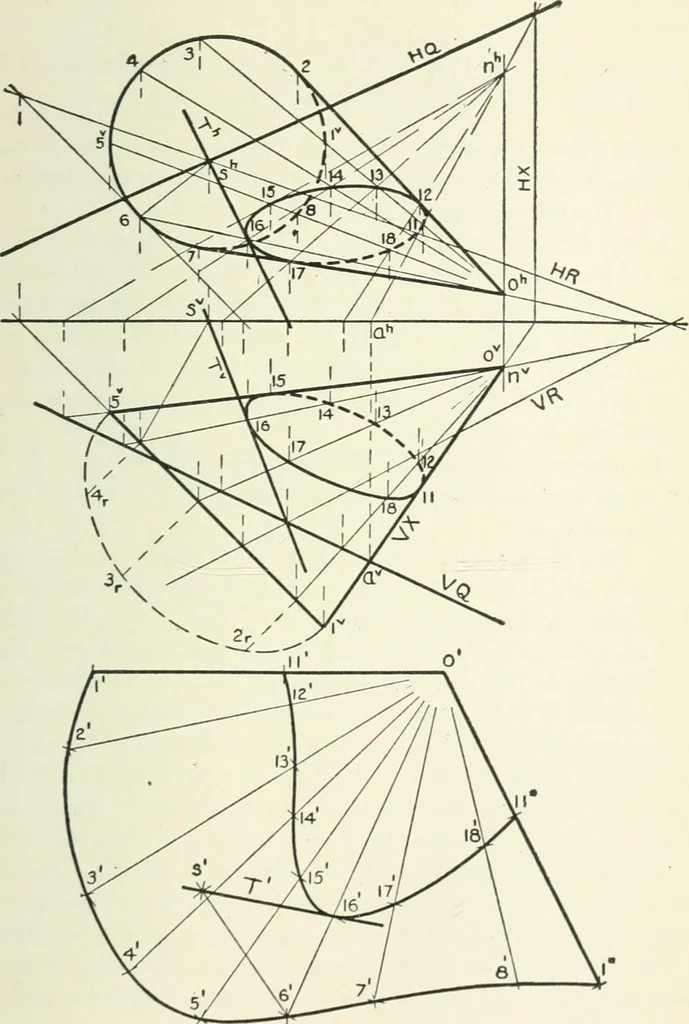

e known. The true size is found here by revolving about the diameterl-5, which is parallel to V. Then the true size is shown bythe points 2r, 3r, etc. Therefore, in the development, l-2equals l»-2r, 2-3 equals 2-3r, etc. The developed tangent is obtained from the triangle 6-16-s,the points 6 and s… … Fig. 305. 232 DESCRIPTIVE GEOMETRY [XXII, § 180 Problem 42. To find the intersection of the frustum of a cone anda plane. Analysis. See §§ 173, 177. The general principles involved,are the same as in the preceding problem. Construction (Fig. 306). The given frustum is placed in thefirst quadrant,…
