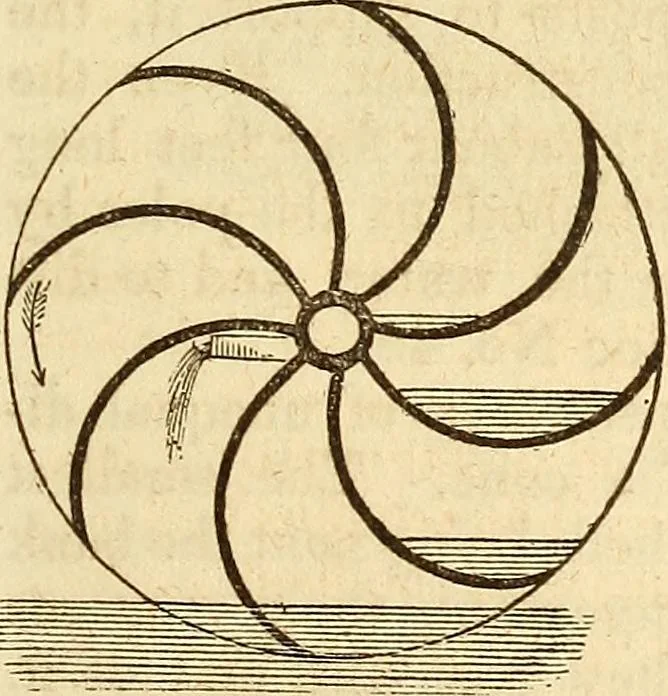

sists of a number of semi-circular partitions, extending from the axle tothe circumference of a large flat cylinder. Asit revolves in the direction of the arrows, the ex-tremities of the partitions dip into the water,and scoop it up, and as they ascend, dischargeit into a trough placed under one… … No. 46. Scoop Wheel. 112 The Chinese Noria. [Book I. THE NORIA OR EGYPTIAN WHEEL. The tympanum has been described as an assemblage of gutters, andthe Noria may be considered as a number of revolving swapes. It con-sists of a series of poles united like the arms of a wheel to a horizontalshaft. To…
