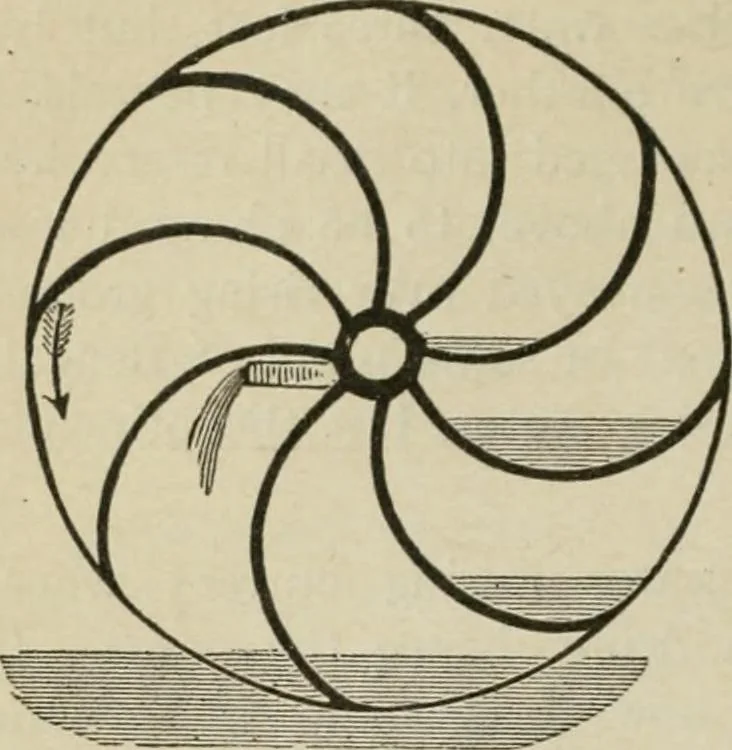

56 Pumps and Hydraulics. … Fig. 75. the axis, being raised at theend of levers which virtuallylengthen till the water is dis-charged from them; this hasbeen remedied by making thearms curving as shown in theScoop Wheel (Fig. 75.) As thisrevolves in the direction of thearrow the extremities of thepartitions dip into the water…
