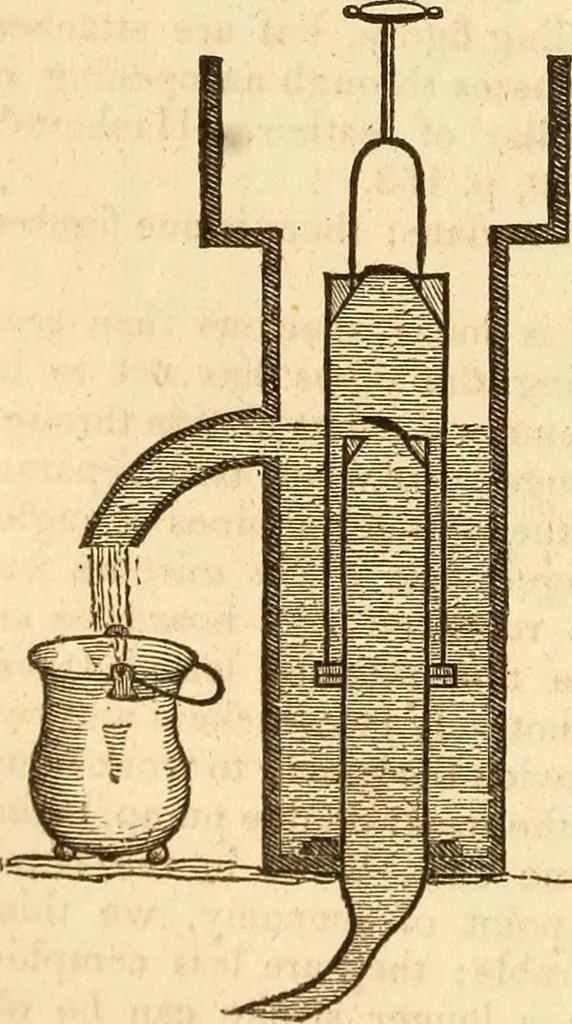

ng made to slide over the pipesomewhat in the manner of telescopetubes. No. 94 represents this pump.The upper end of the suction pipe, beingmade of copper or brass, and its exte-rior smooth and straight, is passedtt. ough the bottom of a small cistern. Its orifice is closed by a valveopening… … No. 94. Muschenbroecks Pump. Chap. 7.] Centrifugal Pump. 229 end is covered by a valve also opening upward. The pump rod is at-tached to the same end by a fork, as represented in the figure. . By mo-ving the cylinder up and down, the air within it and the pipe is soon ex-pelled, and its place…
Pumping machinery
