A descriptive and historical account of hydraulic and other machines for raising water, ancient and modern : with observations on various subjects connected with the mechanic arts: including the progressive development of the steam engine (1876)
Ewbank, Thomas, 1792-1870 · New York : Scribner, Armstrong · leaf 292

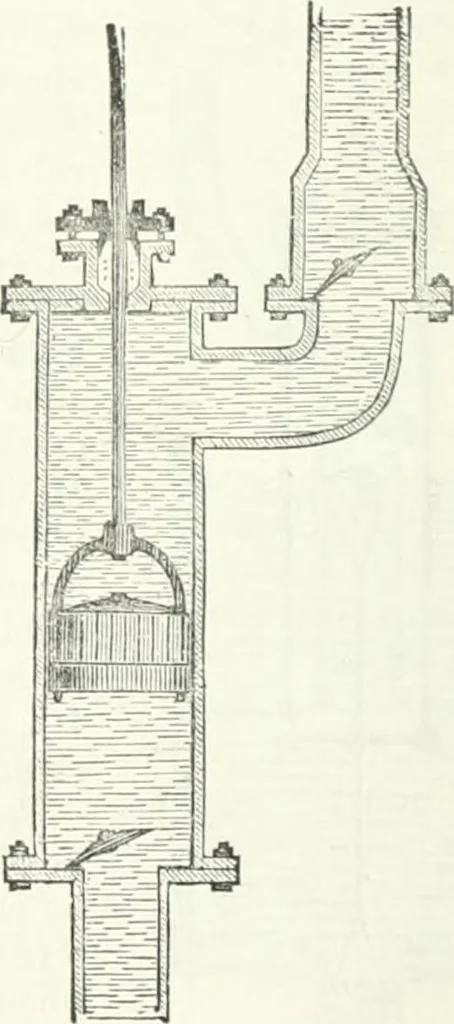

No. 138. Liriiiii; Pump from Agricola. No. 129. Modern Lifting Pump. The modern form of the lifting pump is represented in figure No. 120.The working cylinder being generally brass or copper, and having £.strong flanch at each end : the upper one is covered by a plate with astuffing box in the…
Pumping machinery
