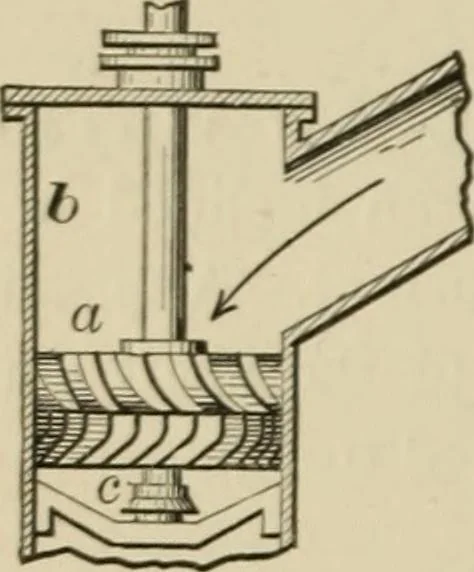

486. JONVAL TURBINE. —The upperinclined blades are fixed. The lower inverseblades form the wheel. … 487. JONVAL TURBINE—/^, The case ;a^ the chute or directrix, fixed; r, the wheelbuckets. The curved buckets are set slightly-tangent and curve downward in parabolic orcycloidal form. Water discharges downward.Efficiency from eighty to eighty-live per cent.
