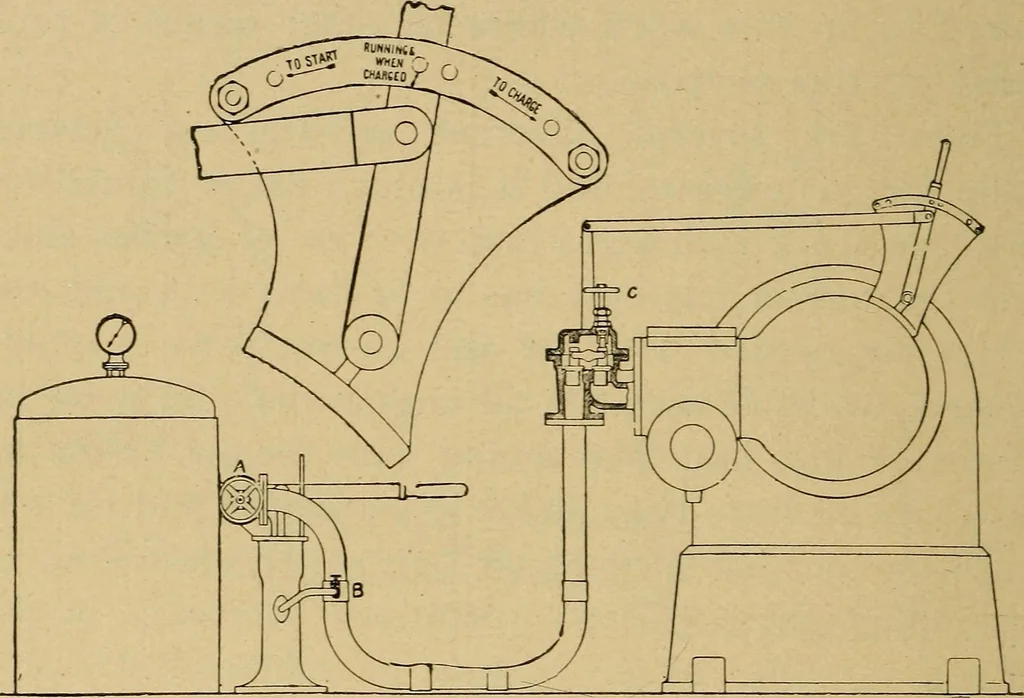

g of theengine or from a small air-compressor operated byhand. The self-starter used with the Hornsby-Akroyd type io6 OIL ENGINES. of oil engine is shown in Fig. 52. The reservoir is con-nected to air and exhaust valve-box of engine througha supplementary valve-box containing two check-valves.… … Fig. 52. marks are generally applicable to all types of enginesprovided with starting devices of this principle.) See that the valve A on the steel receiver is open,and also the cock B on the pipe leading from the handair-pump. Put the starting lever in the quadrant atthe position marked Running…
