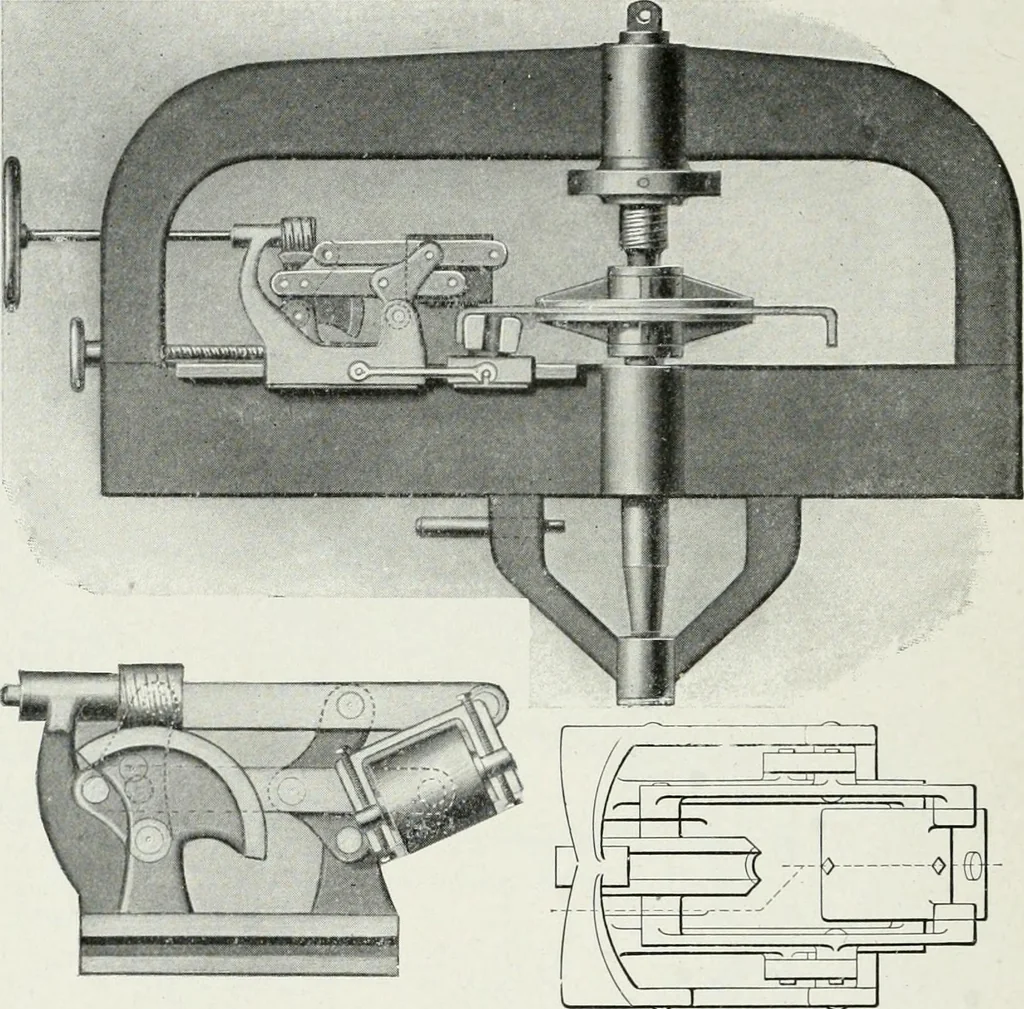

mall rollers hold the metal to the platewhile being operated upon. Sizes of flanges obtainedin soft sheet steel as follows: 10 to 16 guage, |- to 1in.; 16 to 20 gage, | to f in.; 22 to 24 gage, | in.Machine will cut up to No. 8 gage and flange to No.10 guage. 161. Assignment.— P = (1000 to 2000)… … BAHTLETT i CO., N.Y. Fig. 158.—Boiler Head Flanging Machine Details.(Niles-Bement-Pond Catalog) 162. Assignment.—This problem consists essentially of thedevelopment of the mechanism and the design of the parts shownin the detailed figures, i.e., the flanging mechanism. For applica-tion of these…
