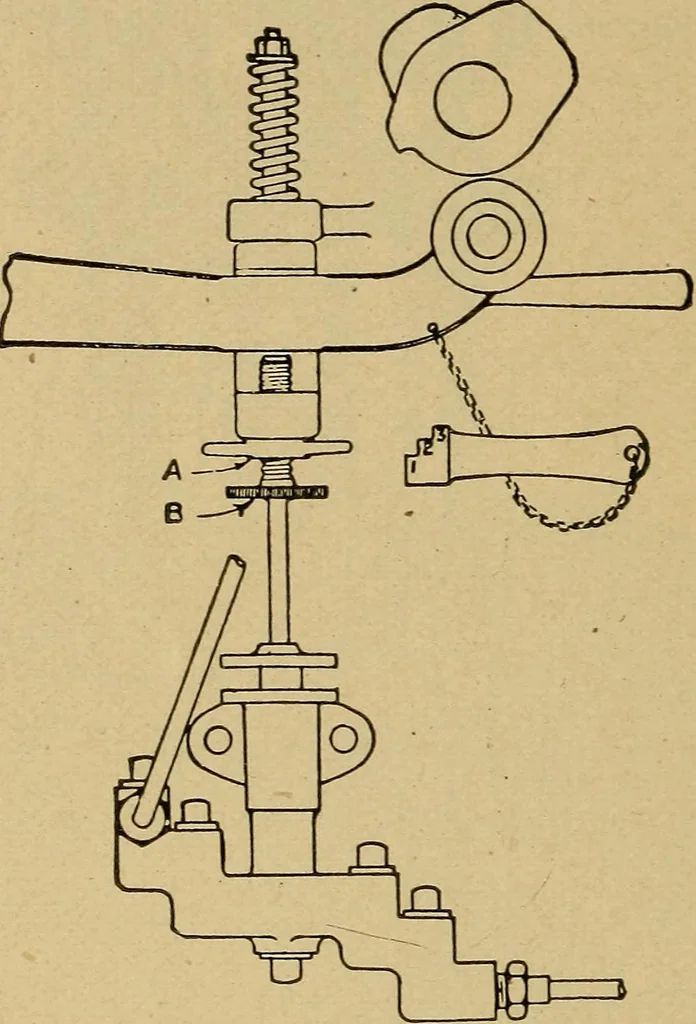

art up. Oiling Engine.—See that the oil-cups on the maincrank-shaft bearings are fitted with proper wicksand with other oil-cups are filled with oil. Oil the i44 OIL ENGINES. small end of the connecting-rod which is inside the pis-ton, also the bearings on horizontal shaft and the skew-gearing, the… … Fig. 66. to the small relief-valve on the vaporizer valve-box.For such purposes, none but the best engine oil shouldbe used. Oil-Pump.—When the engine is working at its fullpower the distance between the two round flanges Aand B on the pump-plunger should be such that thegauge i will just fit in…
