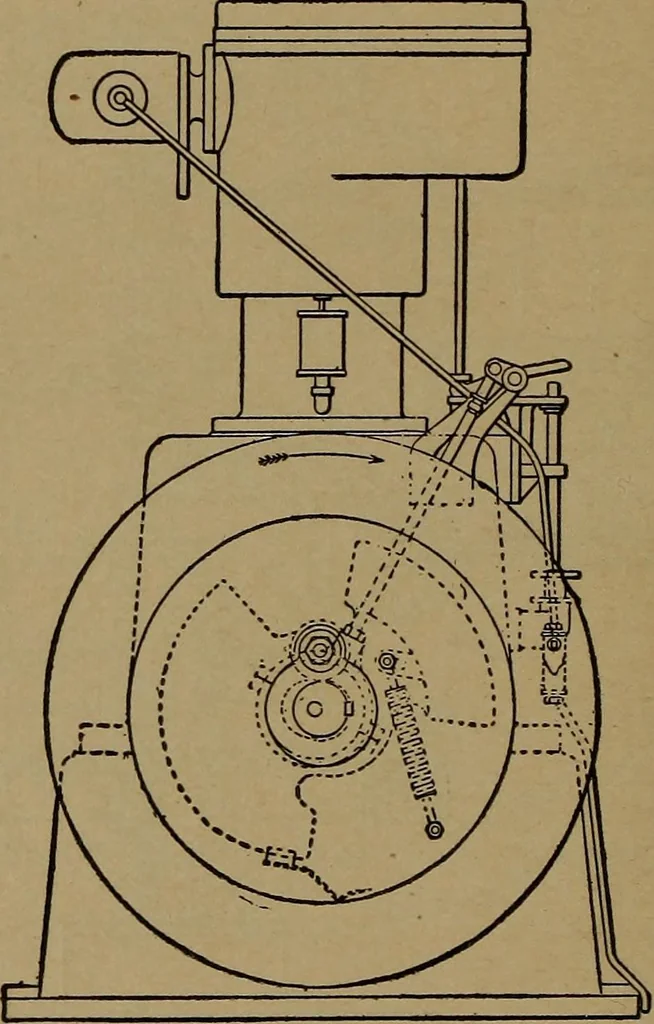

188 OIL ENGINES. by a gearing from the crank-shaft in the regular way,the valves being operated by levers and rods. As willbe seen from the illustration, the cylinders are builtseparately, being water-jacketed and mounted on a … Fig. 79. cast-iron frame of the enclosed type containing thecrank-shaft. Lubrication is effected from the splash-ing of the crank in a bath of oil. The 15 H. P. enginehas cylinders 8J diameter by 9 stroke. Thegoverning is effected by regulating the length of thestroke of the oil pump; no adjustment…
