Goldingham, Arthur Hugh. [from old catalog] · New York, Spon & Chamberlain; [etc., etc.] · leaf 326

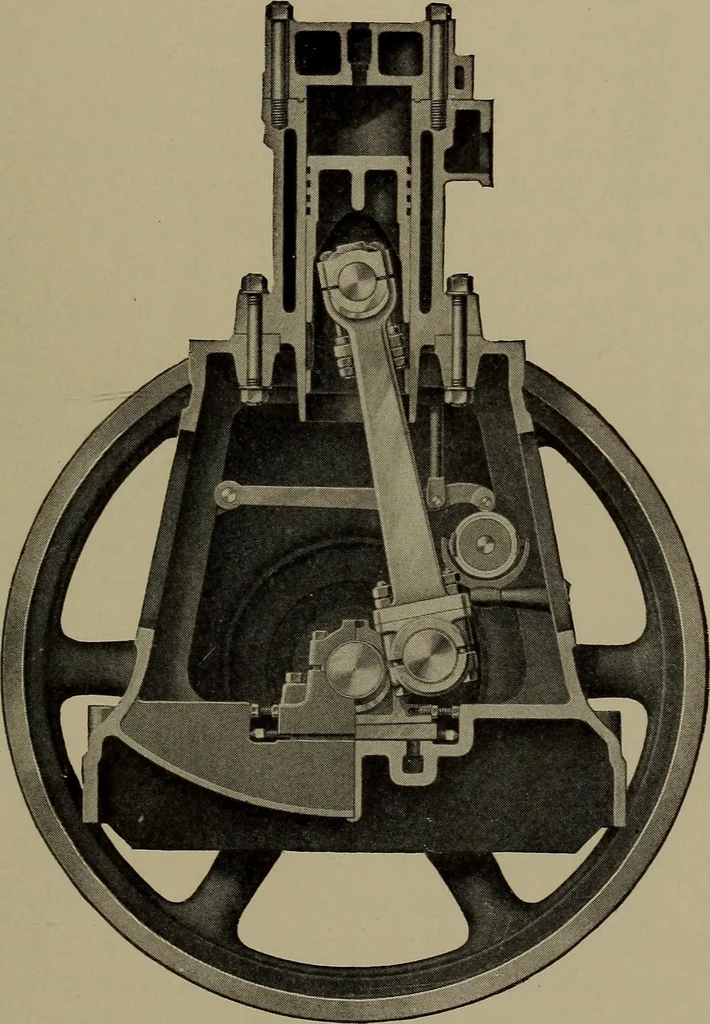

A sectional end view is shown at Fig. 98. Thecrank-shaft, or main bearings, are adjustable by means … Fig. 98. (To face p. 214.) LARGE-SIZED ENGINES. 215 of wedges and screws, as shown. The piston is madeas long as possible, in order to give a maximum bear-ing surface, and is fitted with steel snap-rings. Theconnecting-rods are of the marine type, with adjus-table bearings at both ends. The valve…
Internal combustion engines
