Noyes, William, 1862-1928 · Peoria, Ill. : Manual Arts Press · leaf 103

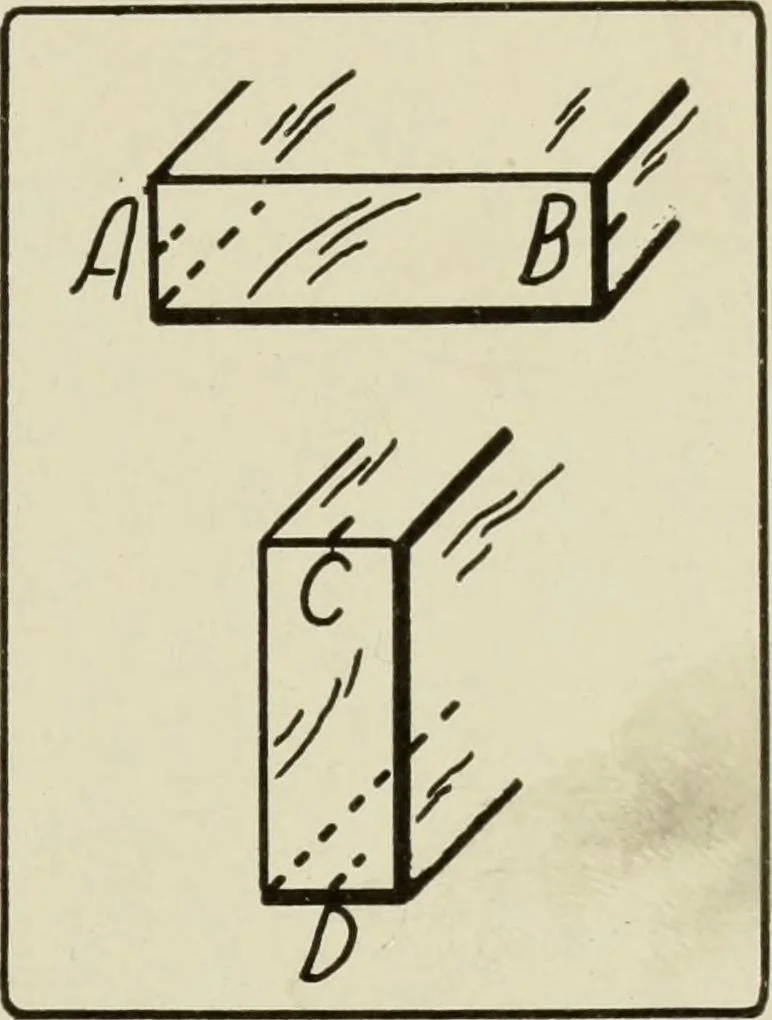

Fitr, 126. Lay-out 01 joint ollower stretcher with leg. TABORET 103 … Fig-. 127 Center lines AB andCD marked on stretchers. •)4 from each edge to indicate the centers of the holes for the dowel-pins, with which the joints are to be fastened together. See Fig. 12G.Mark center line on the edges of stretch-ers C at the ends, as at A B, Fig. 127. To fit the upper…
Woodwork
