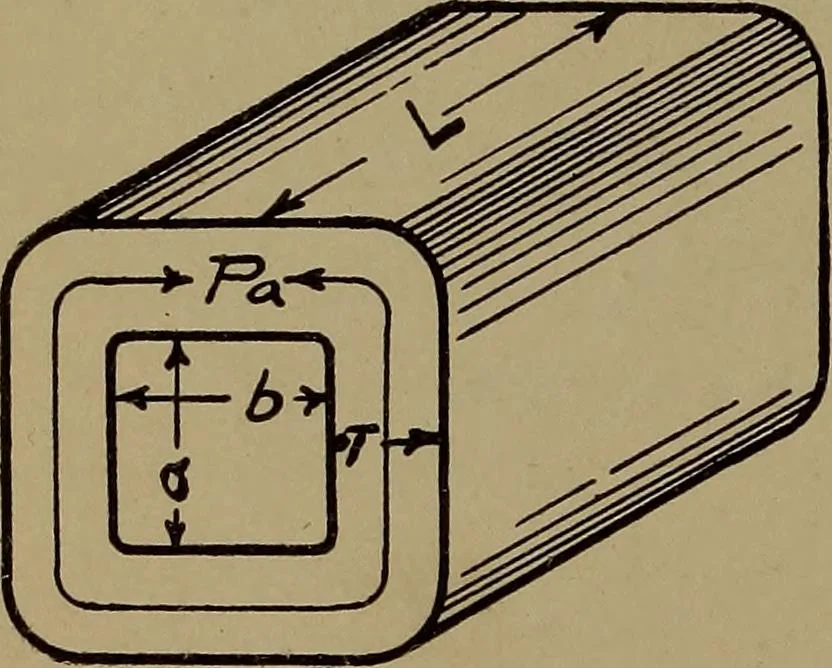

operation afterthe coil heats. Square=Core Coils. On a.c. circuits the magnetic structureis usually made up of laminated iron. These iron laminationsmust be fastened together rigidly and therefore it is not possibleto make the cores circular on account of mechanical difficulties.The cores of a.c.… … Fig. 10. Square Coil 260 I ELECTROMAGNETS AND COILS 21 rhe turns, resistance, and weight of this type of winding can becalculated from equations (15), (16), and (17). The equation forillowable continuous watts is different, however, and for oblongcores is Wa = (a-\-b-\-TrT)lAL (23) jFor square…
