Noyes, William, 1862-1928 · Peoria, Ill. : Manual Arts Press · leaf 142

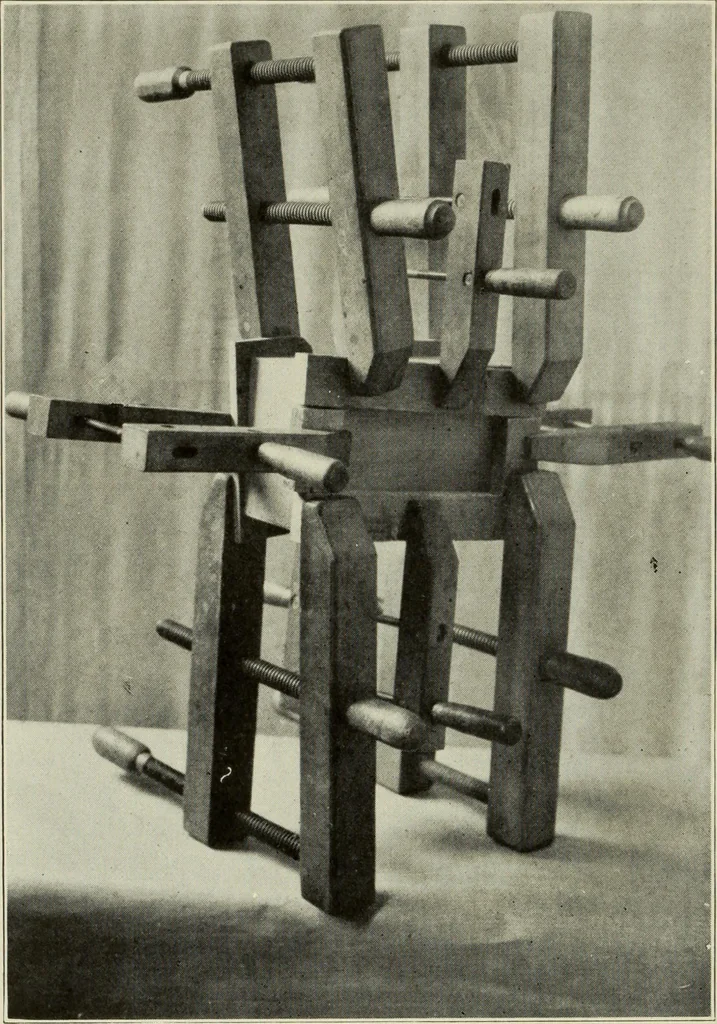

Fig. 191. Danger of rounding the corners, as at A., B. 142 DESIGN AND CONSTRUCTION IN WOOD to fit the butt jointed top to the exact size of the box, but plane onlythe two faces. It can be dressed off after it is glued on. If the top is to be rabbeted into the sides and ends, as in Fig.186, B, these… … Fig. 192. Gluing the top on to the box. ished. Plow out the rabbets 3/16 deep, and wide enough, just overy%\ so that the top will fit easily into its place. The bottom is tobe 5/16 thick, and to be fitted exactly into the space rabbeted for it.Clean out any dried glue that there may be in the…
Woodwork
