The design, construction and test of a direct reading engine indicator (1917)
Tower, Alexander McJunkin, Siegmund, Humphreys Oliver · leaf 58

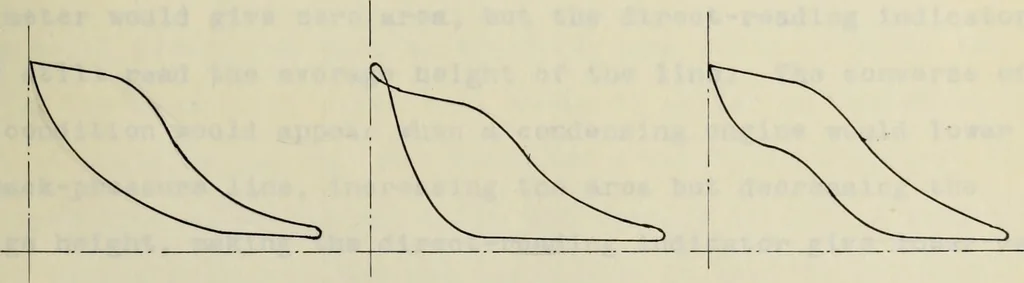

Fig. 26. Normal Steam Engine Card. reason common to steam engines, there was something occuring inthe cylinder to cause the card to take any one of the forms shownin Figure 27. In every case, the average height of the line is … Fig. 27. Typical Defective Steam Engine Cards. above that in Figure 26, but the increased average height resultsfrom increases in cylinder pressure on the back stroke of the piston 25 when the engine is doing work on the enclosed steara negative work.The planiraeter takes cars of that part, for it…
Internal combustion engines · Theses
