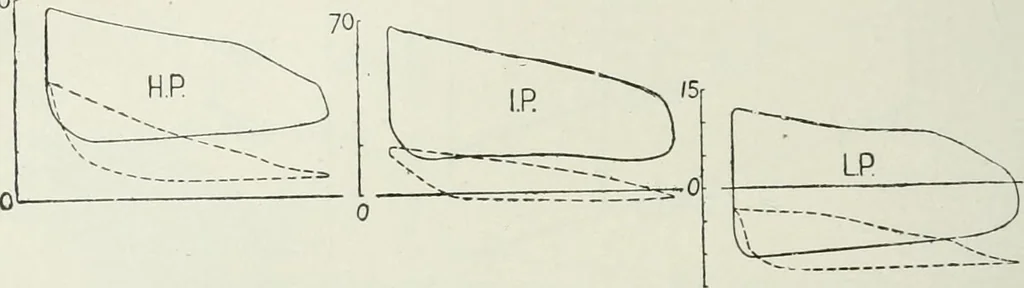

essure cylinder, make the cut-off in that cylinder earlier, andvice versa. This is also illustrated in Figs, 151 and 154, An adjust-able cut-ofF for the low-pressure cylinders of marine engines is shownin Fig. 81, Fig. 155 shows indicator diagrams of one set of engines of H,M,S,Poioerful, a… … Pig. 155, Boiler pressure (lbs.)Vacmini (ins.)Revolutions ,,, rn.p. I A.L. At full power. At. low power. 205-0 190-0 26-25 . 26-75 116-95 . 6918 4287-48 . 981-38 423315 . 729-27 ... 2263-51 , 426-03 2237-79 426-03 Total 1.3,021-93 2562-71 The engines are four-cylinder, triple-expansion engines,…
