Design of elevated steel tanks (1911)
Trees, Merle Jay, 1883-1954 · leaf 100

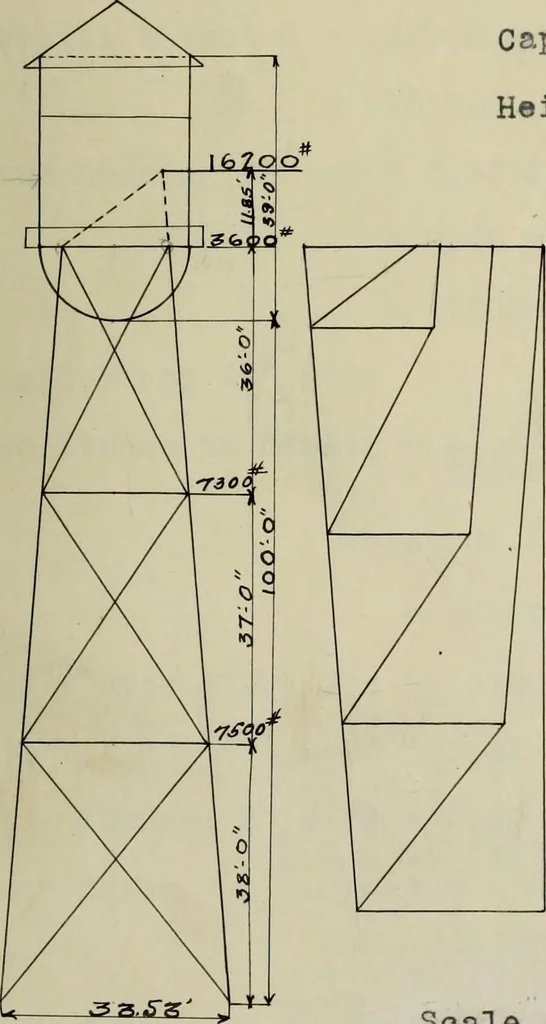

3. Graphic Solution of Wind Stresses. … Fig. Capacity 100000 gallons.Height 111 feet to balcony.Stresses. Posts. Top 42500 x 0.707 = 30000#Int. 70000 x 0.707 = 49500$Bot. 97500 X 0.707 = SRSOQr Scale. Struts. Top 21000 r 2.0Bot. 24000 r 2.0 Rods. Top 34000 4-2.0Int. 33500 -r 2.0Bot. 34500 4 2.0 = 1050(= 1200( = 17000#= 16750f= 17250#…Building, Iron and steel · Water tanks · Theses
Internet Archive · University of Illinois Urbana-Champaign · Public Domain Mark 1.0. Free to use for anything.
