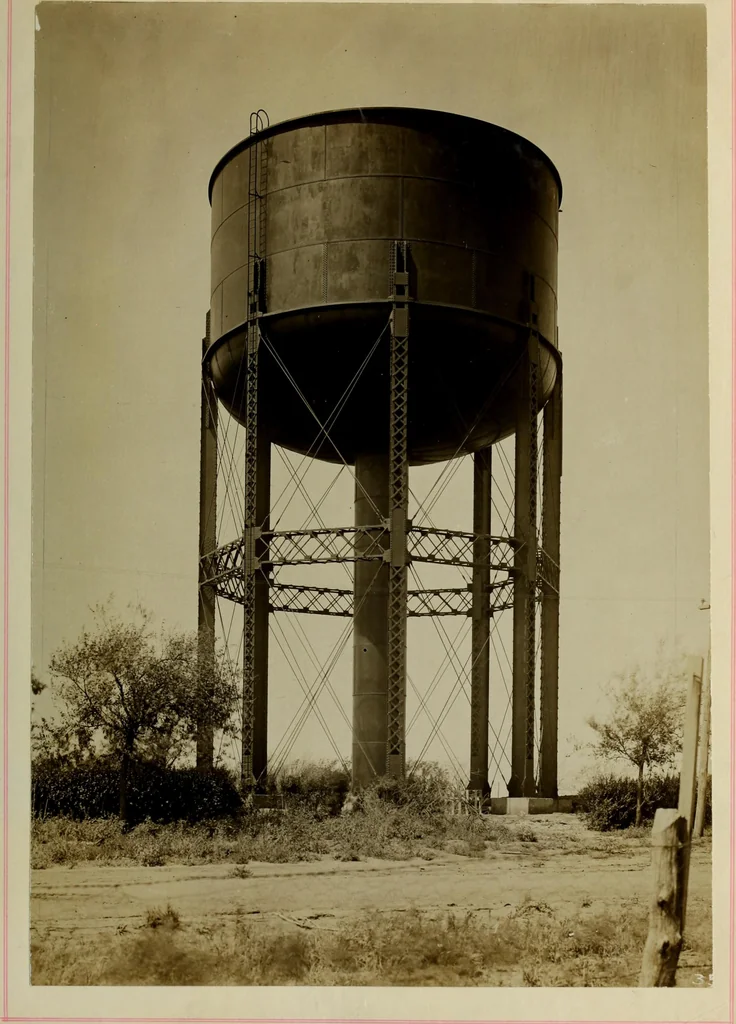

50. … 51 B. - Ten-post Elliptical Bottom Tank (Pos.ts Vertical) - Capacity 1,000,000 gallons. Height 68 feet to balcony1. Stresses. <b4-o (a) Center of Gravity on Tank. To determine the center of gravity of thediametrical plane of the tank,takemoments aft out balcony line. Roof 13.3x34.5 ■ 458x35.46 =…
