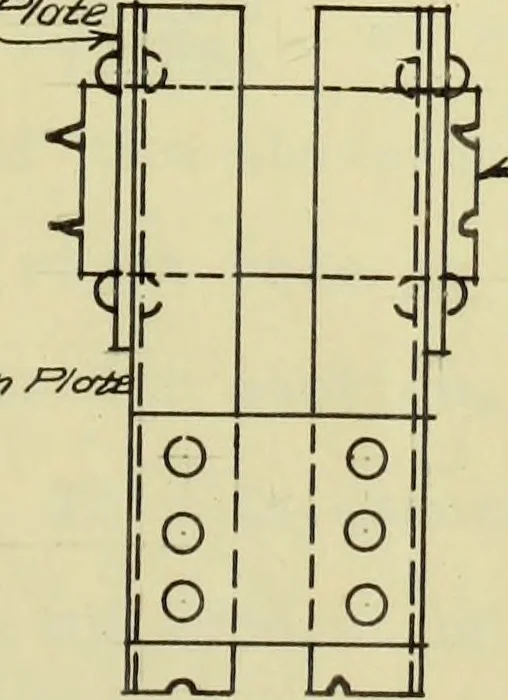

/=>/7 /=>/o£e … Fig. 5. Connection of HighVertical to Pin at U. 171 -0-= 3.00 inches. The connection between thepin plate and the channel wasfound to be weakest in bearing inthe channel web. The stresstransferred to the 3/8 inch pinplate is : 30. 6,050 _ ,5,600 1,68 = say 4 shop rivets. At the lower end,this…
