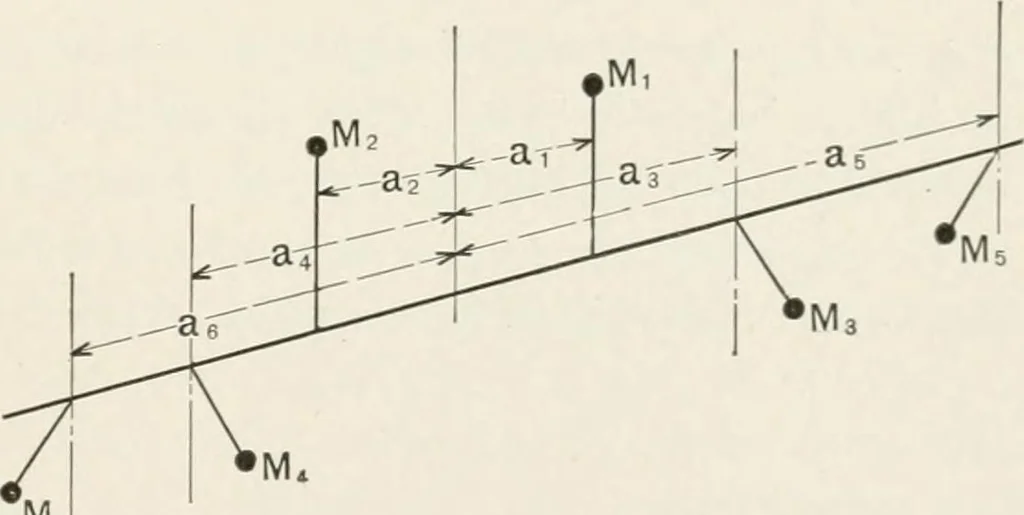

are equal and the cranks make angles of120°. This balanced set of three cranks can be eliminated andthe remaining five cranks will be in perfect balance. Theconditions will be as follows: Ml -f M4 = Mi + Mz = M5. MiGi = M^di. MzQz = M^ch- Ml and M^ are in the same axial plane.M2 and Mz are in the… … Fig. 72. eHmination of two sets of balanced three-crank engines. Fig. 72shows the resulting arrangement for the six-crank engine. Theconditions will be as follows: Ml ^- M2 = M3 -F M4 = Ms -f Me. MiOi = Mia-i. MzQz = M^a^. M^a^ = Mefle- 124 THE DESIGN OF MARINE ENGINES AND AUXILIARIES Ml and M2 are…
