Machine design; a manual of practical instruction in designing machinery for specific purposes, including specifications for belts, screws, pins, gears, etc., and many working hints as to operation and care of machines (1918)
Wallace, Ernest L · Chicago, American technical society · leaf 36

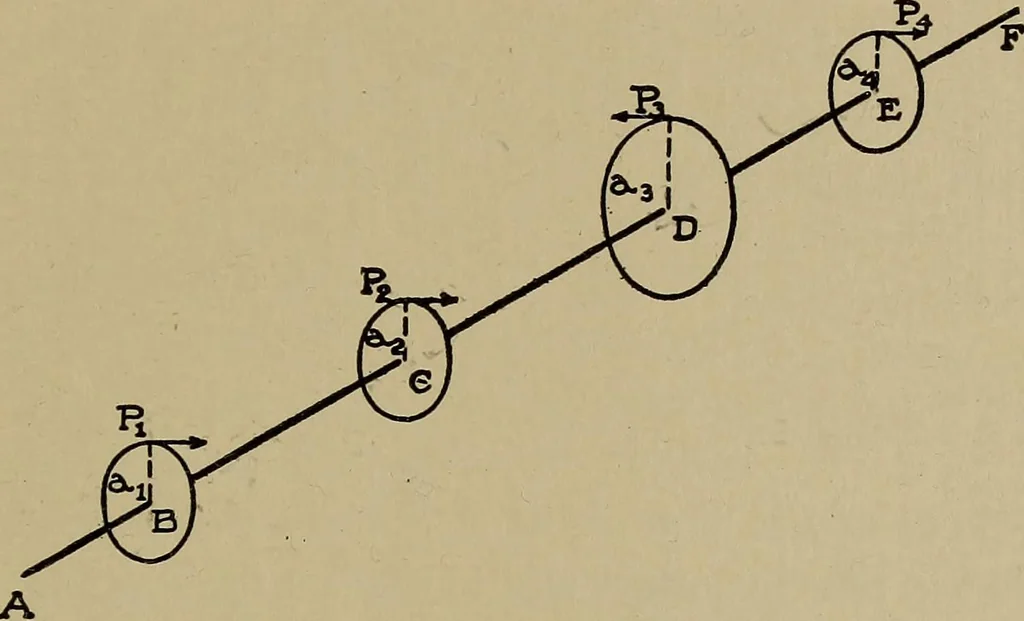

and sometimes hollow. Twisting Moment. Let AF, Fig. 9, represent a shaft withfour pulleys on it. Suppose that D is the driving pulley and thatB, C, and E are pulleys from which power is taken off to drive ma-chines. When the shaft is transmitting power, the portions between MACHINE DESIGN 25 the… … Fig. 9. Twisting Action on Shaft taken with respect to the axis of the shaft. Thus, if the forces actingon the shaft (at the pulleys) are Pv P2, P3, and P4, as shown, and ifthe arms of the forces or radii of the pulleys are av a2, a3, and a4,respectively, then the twisting moment at any section in…
