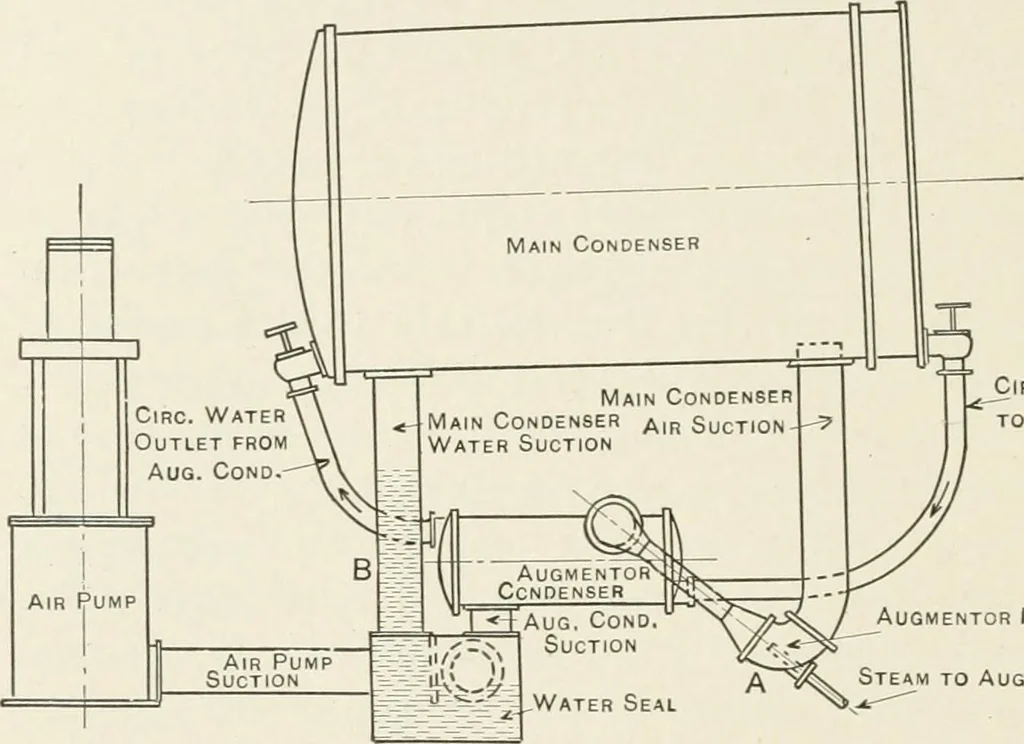

e hotwater and a spray of cold water introduced into the air suction 138 THE DESIGN OF MARINE ENGINES AND AUXILIARIES pipe of the dry air pump. Curve C is for the same condenserwith a single air pump to remove the air and water together.The water used in the spray is inchided in the pounds of… … CiRc. Water I^LETTO Augmentor Cond Augmentor NozzleSteam to Augmentor Fig. 79. condenser at low pressure and delivers it to the air pump at ahigher pressure, the difference in pressure between the air pumpand condenser being maintained by the column of water B on oneside and by the momentum of the…
