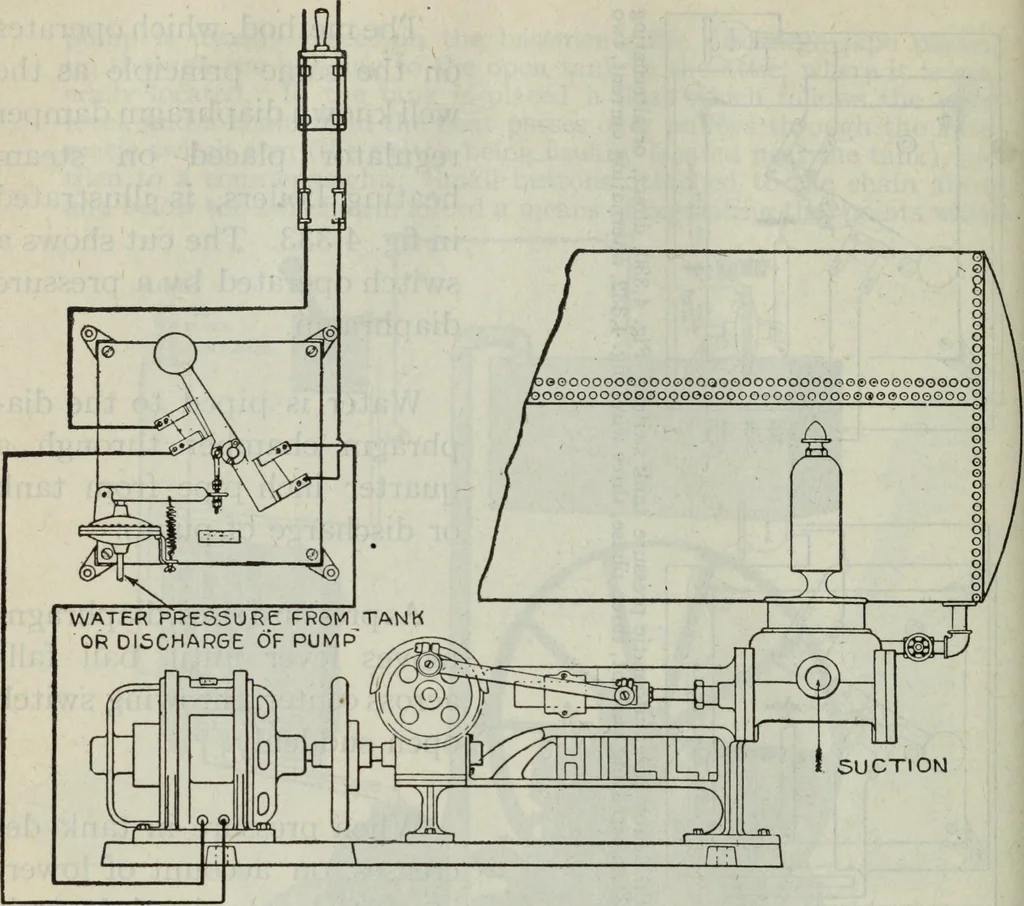

aphragmmoves lever until ball fallsacross center, throwing switchopen suddenly. When pressure in tank de-creases, on account of lower-ing of the water level, lever ismoved until ball falls to theopposite side, closing switchand again starting motor andpump. The apparatus is setfor different… … FlG. 4,333.—Hill electric tank pump and method of pressure control. The illustrationshows a doable pole switch connected with a diaphragm pressure regulator, whose operationis described in the accompanying text. The switch here shown is designed for pumps upto 23^2 horse power direct current, and 5…
