The design of marine engines and auxiliaries (1916)
Bragg, Edward Milton, b. 1874 · New York, D. Van Nostrand Co. · leaf 197

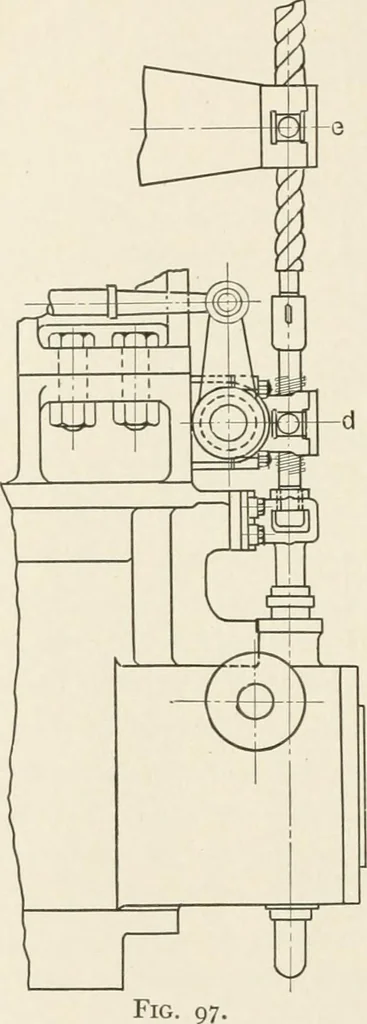

everse lever is held stationary whichmakes c a fixed point and a veryslight movement of a closes the valve and the gear isstopped. 183. Brown Gear. — In the Brown gear shown in Fig. 97 thefloating lever is replaced by a valve stem with a fine thread onone end and a coarse thread on the other. When… … TURNING ENGINES AND REVERSING ENGINES 179 were a fixed point the valve would be closed by the movementof the spindle through the nut e. If the nut d is moved up ordown so as to counteract the movement of the spindle throughthe nut, the valve will be held open. When the gear is to bestopped the nut…
Marine engines
Internet Archive · California Digital Library · Public Domain Mark 1.0. Free to use for anything.
