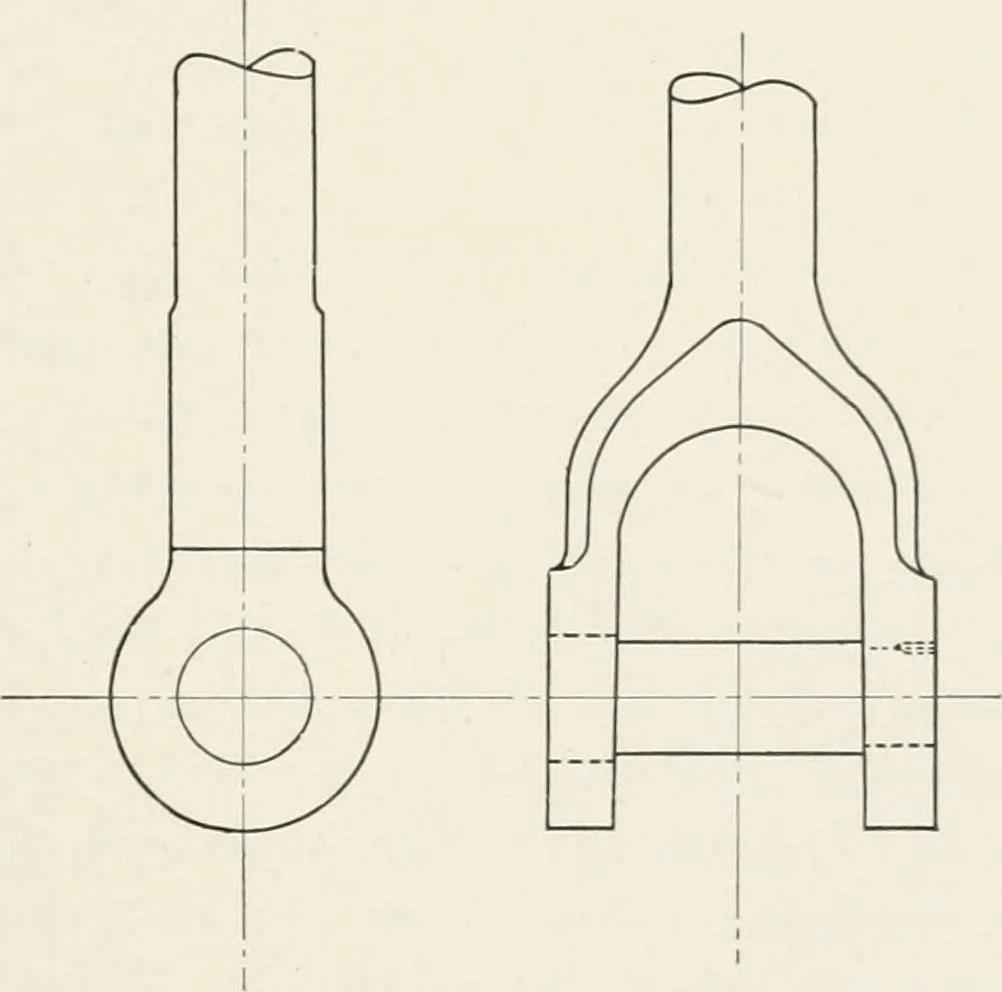

Fig. 32. DESIGN OF ENGINE PARTS 6;; of centers when the maximum load occurs. The effect of thisangularity is to increase the load W to the following extent:F = Wk.I If = 4 4-25 4-5 4-75 k = 1.033 I-03 1.026 1.023 1.021W = maximum load upon piston rod. The diameter of the rod at mid-length can be… … Fig. 33- 64. Taper of Body of Rod. — The accelerating forces, whichare acting upon the connecting rod as it swings back and forthacross the line of centers, give rise to a certain amount of bending.This bending is a maximum when the rod makes its maximumangle with the line of centers. The resultant…
