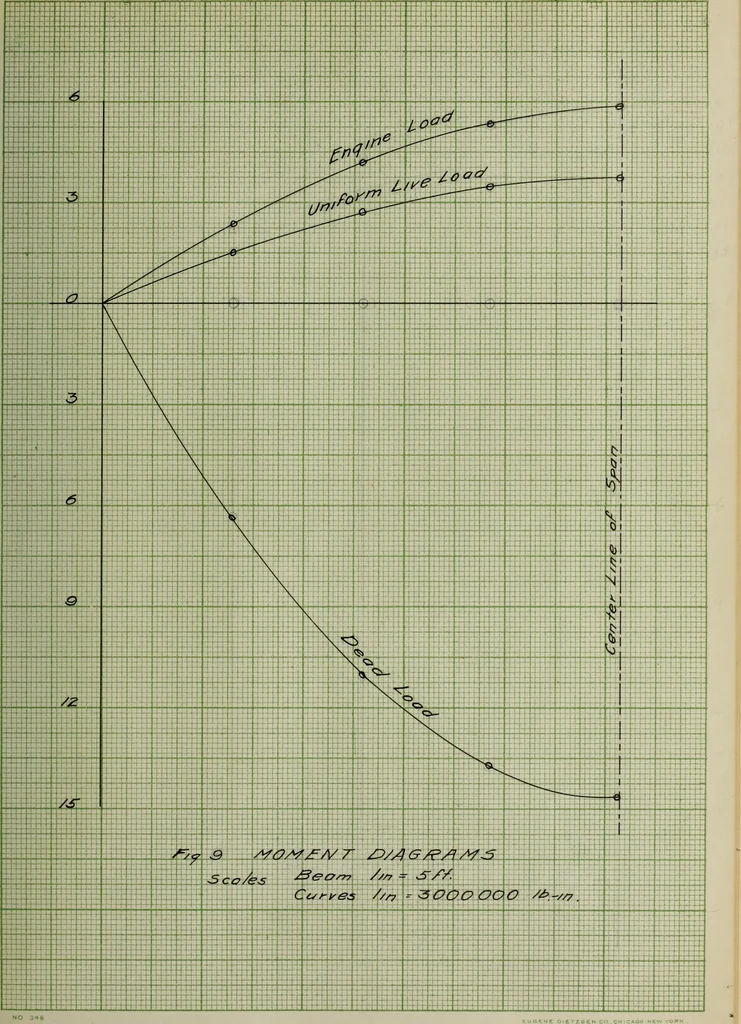

rder.Ths weight of t:he girder per foot is 2.5 X 4.75 X 155 - 1,780 lb.The total dead load per foot of girder is 3,695 pounds.The moment at the eente of the girder isi Wl2 = % X 3,695 X 51.25 X 12s 14,691,600 lb.-in.The total monent is 20,491,600 lb. in.Assuming p - .02, p1 b. .01 then X s 0.47 and… … 32
