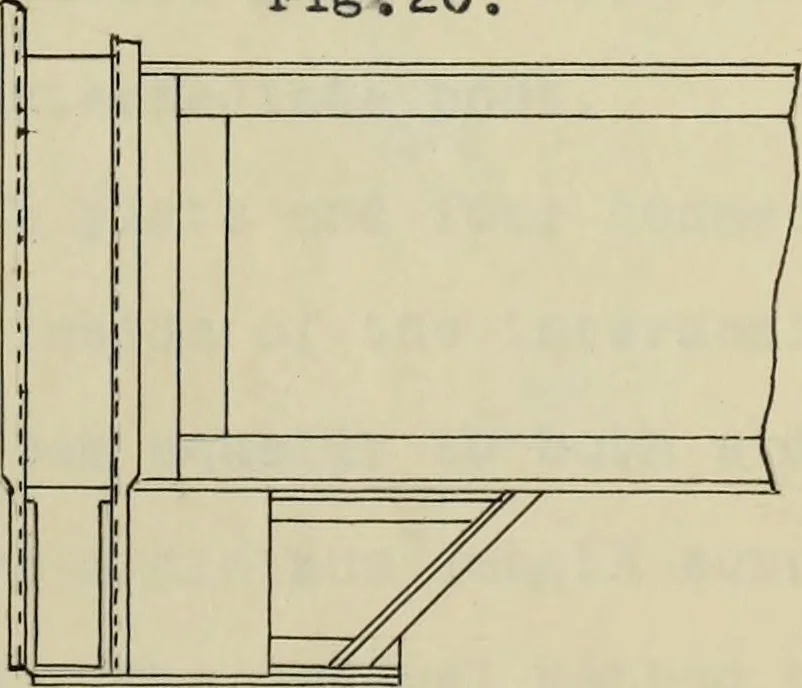

Fig. 21, Fig.22. 13. In each of these three cases the splice plates ape continued tothe end so as to act also as filler plates and to aid in strength-lng the web around the cut. The main difference In these threedifferent connections is in the arrangement of the short slantingreinforcing angles…
