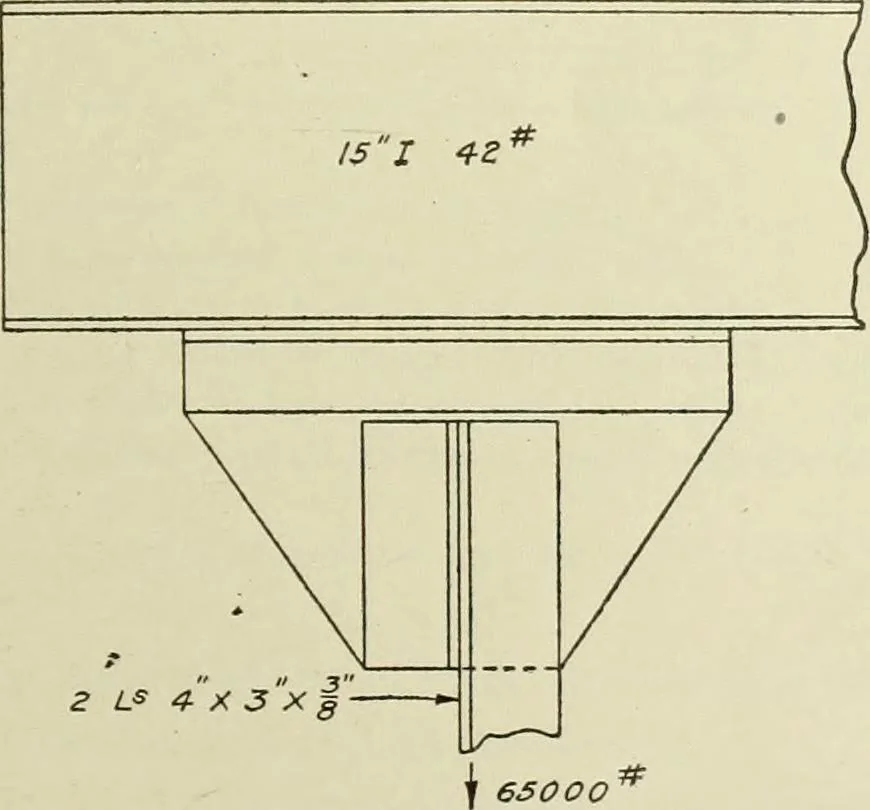

Fig. 05. Two Angles Attached to aGusset Plate … 65000 Fig. 66. Side and End View of a Riveted Hanger Problems. 1. Fig. 65 shows two angles in tension to be connected to a gusset platewith shop rivets. Determine the following: Size of rivets Net section of angles STEEL CONSTRUCTION 71 Tension value of net seel ion Thickness of gusset plate to…
